SP18 Single Point Load Cell

Single Point Platform-Type

Get Your Free Quote

6.6 to 220.4 lbf
3 to 100 kg

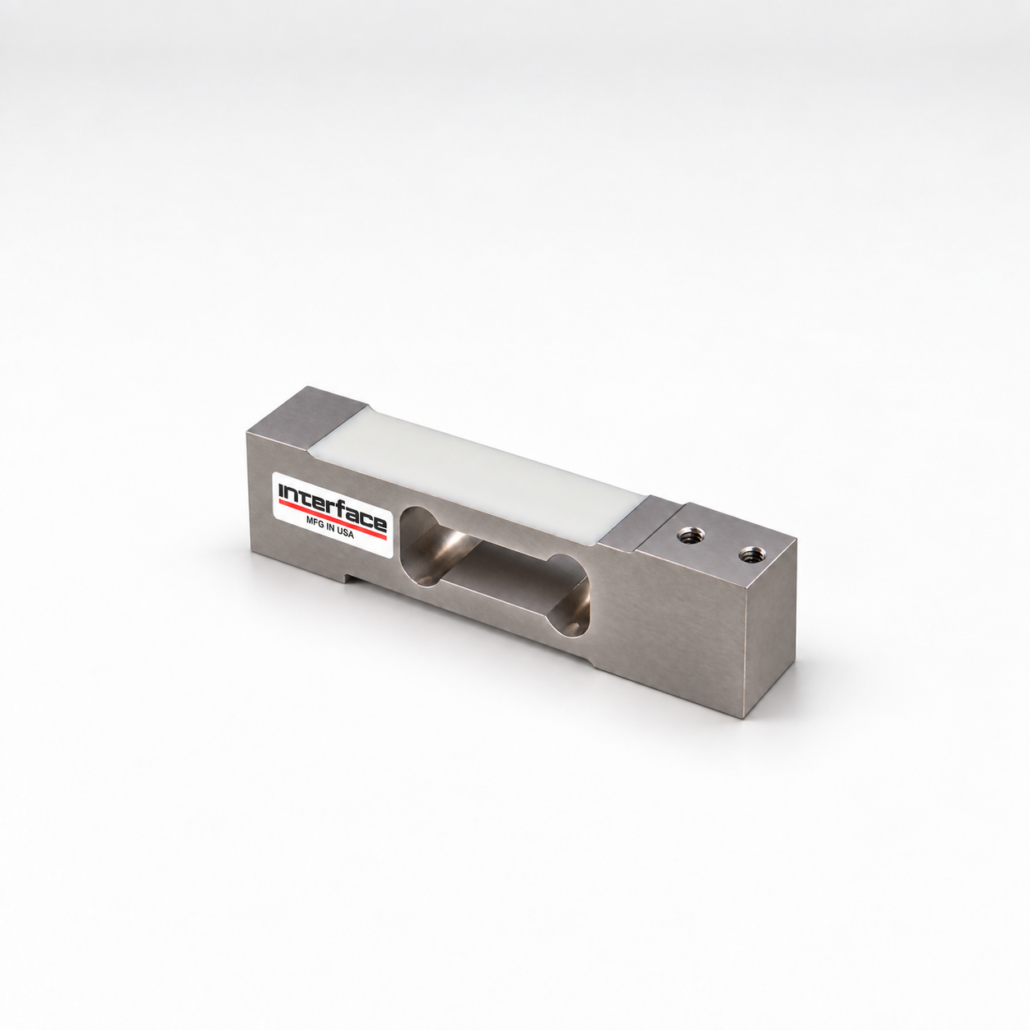

The Interface Model SP18 is an aluminum single point load cell designed for reliable weighing in compact platform and scale applications. Its IP66-rated construction helps protect the sensor from dust and water exposure, while capacities from 3 to 100 kilograms provide flexibility across a range of systems. The SP18 includes 10 feet of load cell cable, supporting dependable integration into commercial weighing equipment.

Product Downloads

The Interface Model SP18 is an aluminum single point load cell designed for reliable weighing in compact platform and scale applications.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , Tags: , , , , , ,

Features and Benefits

  • Aluminum single-point load cell construction
  • IP66 environmental protection rating
  • Available capacities from 3 to 100 kg
  • Single-point design supports accurate platform weighing with off-center loading
  • Aluminum construction provides a lightweight, durable solution
  • IP66 protection helps resist dust and powerful water jets in industrial environments
  • Broad capacity range supports a variety of scale and weighing applications

Options

  • Transducer Electronic Data Sheet (TEDS)
  • Add connector to cable

Accessories

  • Instrumentation

Specifications

Specifications

ACCURACY – (MAX ERROR)
Combined Error – %FS 0.02
TEMPERATURE
Compensated Range °F 14 to 104
°C -10 to 40
Operating Range °F 0 to 150
°C -18 to 65
ELECTRICAL
Rated Output – mV/V (Nominal) 2.0 ± 10%
Bridge Resistance – Ohm (Nominal) 350 (±3)
Excitation Voltage – MAX VDC (15 V maximum) 10
Input Resistance – Ohm 415 (±20)
Insulation Resistance – Megohm 5,000
MECHANICAL
Safe Overload – %CAP (at center of loading point, full scale) 150
Material Aluminum
IP Rating IP66
Cable Length m 3
ft 10

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

See Drawing CAPACITY
Metric (kg) U.S. (lbf) Metric (kg) U.S. (lbf)
3, 5, 7, 10, 15, 20, 30 6.6, 11.0, 15.4, 22.0, 33.0, 44.0, 66.1 50, 75, 100 110.2, 165.3, 220.4
mm in mm in
(1) 150.0 5.91 150.0 5.91
(2) 100.0 3.94 100.0 3.94
(3) 19.0 0.75 19.0 0.75
(4) 20.0 0.79 25.4 1.0
(5) 40.0 1.6 40.0 1.6
(6) 31.2 1.23 31.2 1.23
(7) 34.0 1.34 34.0 1.34
(8) 1/4-20 UNC x 5 1/4-20 UNC x 5

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
Color Function
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Yellow -Sense

Additional Information

Dimensions 0.62 × 5.13 × 2.99 in

Product Video

Features and Benefits

  • Aluminum single-point load cell construction
  • IP66 environmental protection rating
  • Available capacities from 3 to 100 kg
  • Single-point design supports accurate platform weighing with off-center loading
  • Aluminum construction provides a lightweight, durable solution
  • IP66 protection helps resist dust and powerful water jets in industrial environments
  • Broad capacity range supports a variety of scale and weighing applications

Options

  • Transducer Electronic Data Sheet (TEDS)
  • Add connector to cable

Accessories

  • Instrumentation

Specifications

Specifications

ACCURACY – (MAX ERROR)
Combined Error – %FS 0.02
TEMPERATURE
Compensated Range °F 14 to 104
°C -10 to 40
Operating Range °F 0 to 150
°C -18 to 65
ELECTRICAL
Rated Output – mV/V (Nominal) 2.0 ± 10%
Bridge Resistance – Ohm (Nominal) 350 (±3)
Excitation Voltage – MAX VDC (15 V maximum) 10
Input Resistance – Ohm 415 (±20)
Insulation Resistance – Megohm 5,000
MECHANICAL
Safe Overload – %CAP (at center of loading point, full scale) 150
Material Aluminum
IP Rating IP66
Cable Length m 3
ft 10

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions

See Drawing CAPACITY
Metric (kg) U.S. (lbf) Metric (kg) U.S. (lbf)
3, 5, 7, 10, 15, 20, 30 6.6, 11.0, 15.4, 22.0, 33.0, 44.0, 66.1 50, 75, 100 110.2, 165.3, 220.4
mm in mm in
(1) 150.0 5.91 150.0 5.91
(2) 100.0 3.94 100.0 3.94
(3) 19.0 0.75 19.0 0.75
(4) 20.0 0.79 25.4 1.0
(5) 40.0 1.6 40.0 1.6
(6) 31.2 1.23 31.2 1.23
(7) 34.0 1.34 34.0 1.34
(8) 1/4-20 UNC x 5 1/4-20 UNC x 5

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

CABLE CONNECTION
Color Function
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Yellow -Sense

Additional Information

Dimensions 0.62 × 5.13 × 2.99 in

Product Video

Short Description Sku Price
Model SP18-10 Single Point Load Cell 10 kg Capacity with 10-foot Integral Cable SP18-10 $300.00
Model SP18-100 Single Point Load Cell 100 kg Capacity with 10-foot Integral Cable SP18-100 $300.00
Model SP18-15 Single Point Load Cell 15 kg Capacity with 10-foot Integral Cable SP18-15 $300.00
Model SP18-20 Single Point Load Cell 20 kg Capacity with 10-foot Integral Cable SP18-20 $300.00
Model SP18-3 Single Point Load Cell 3 kg Capacity with 10-foot Integral Cable SP18-3 $300.00
Model SP18-30 Single Point Load Cell 30 kg Capacity with 10-foot Integral Cable SP18-30 $300.00
Model SP18-5 Single Point Load Cell 5 kg Capacity with 10-foot Integral Cable SP18-5 $300.00
Model SP18-50 Single Point Load Cell 50 kg Capacity with 10-foot Integral Cable SP18-50 $300.00
Model SP18-7 Single Point Load Cell 7 kg Capacity with 10-foot Integral Cable SP18-7 $300.00
Model SP18-75 Single Point Load Cell 75 kg Capacity with 10-foot Integral Cable SP18-75 $300.00
