TS19 Short Flange Style Reaction Torque Transducer

Flange-type

  • Capacities from 50 Nm to 10K Nm (443 lbf-in to 88.5K lbf-in)
  • Short, rugged, compact design
  • Both ends with flange


Request a Quote

Request a CAD File

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • TS19 50-100Nm STP Files
  • TS19 200Nm STP Files
  • TS19 500-1KNm STP Files
  • TS19 2KNm STP Files
  • TS19 5K-10KNm STP Files
  • TS19 50k-100k Nm Drawing
  • TS19 200k Nm Drawing
  • TS19 500k-1000k Nm Drawing
  • TS19 5000k-10000k Nm Drawing

Specifications

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

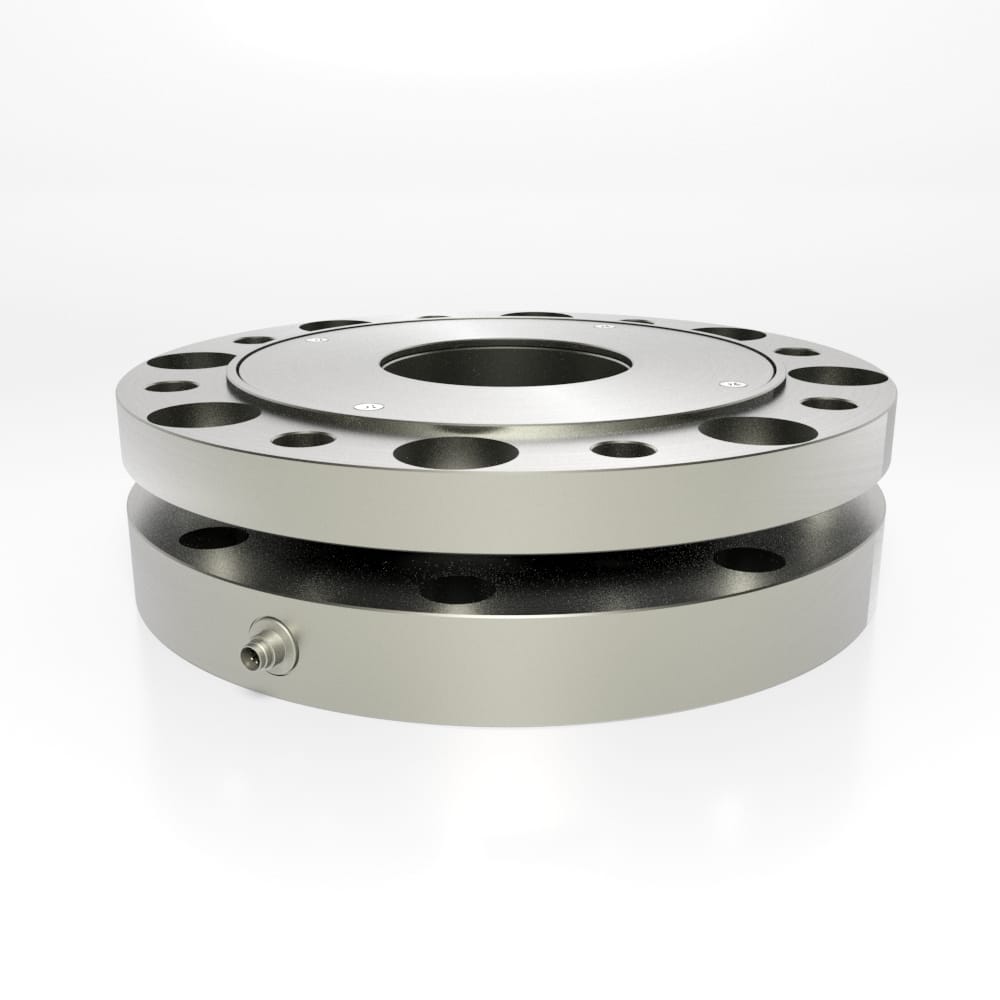

Model TS19 features an ultra-compact design, allowing the smallest possible flange-to-flange thickness of any reaction torque sensor. Both flanges include pilots.

See datasheet for available models, additional capacities, connectors, options, and accessories.
