Features and Benefits
- Capacities from 20 Nm to 5K Nm (177 lbf-in to 44K lbf-in)
- Monitor’s Pulley Torque
- ±5 VDC output (±10VDC Optional)
- Contactless
- 12-28VDC Power Supply
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

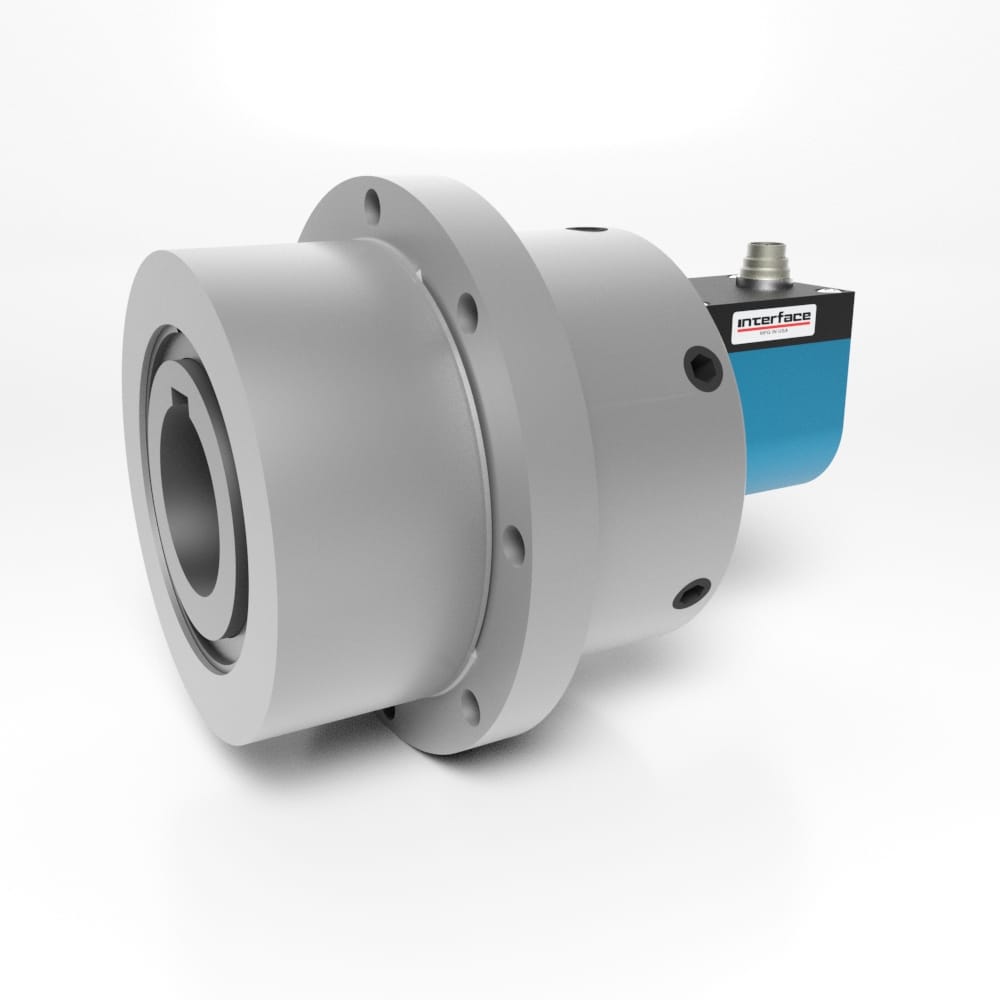

Model T22 is used for monitoring pulley torque, belt or chain tension, or anywhere a torque measurement needs to be made that includes a large radial load component. The contactless design features 0.1% combined error, high-level ±5V or ±10V analog output, 16-bit resolution and 3khz bandwidth. A remotely activated, internal shunt calibration resistor provides a known 5V calibration signal. Speed and angle can be measured with the optional encoder.
Model T22 is used for monitoring pulley torque, belt or chain tension, or anywhere a torque measurement needs to be made that includes a large radial load component. The contactless design features 0.1% combined error, high-level ±5V or ±10V analog output, 16-bit resolution and 3khz bandwidth. A remotely activated, internal shunt calibration resistor provides a known 5V calibration signal. Speed and angle can be measured with the optional encoder.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Weight | 0.00 lbs |
---|---|
Dimensions | 3.48 × 6.63 × 3.48 in |
Configurations | T22-100-A1A-XXX, T22-100Nm, T22-1K A1A-XXX, T22-1K Nm, T22-20-A1A-XXX, T22-200-A1A-XXX, T22-200Nm, T22-20Nm, T22-2K Nm, T22-2K-A1A-XXX, T22-50-A1A-XXX, T22-500-A1A-XXX, T22-500Nm, T22-50Nm, T22-5K Nm, T22-5K-A1A-XXX |
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Weight | 0.00 lbs |
---|---|
Dimensions | 3.48 × 6.63 × 3.48 in |
Configurations | T22-100-A1A-XXX, T22-100Nm, T22-1K A1A-XXX, T22-1K Nm, T22-20-A1A-XXX, T22-200-A1A-XXX, T22-200Nm, T22-20Nm, T22-2K Nm, T22-2K-A1A-XXX, T22-50-A1A-XXX, T22-500-A1A-XXX, T22-500Nm, T22-50Nm, T22-5K Nm, T22-5K-A1A-XXX |
Short Description | Sku | Price |
---|---|---|
Model T22 Pulley Belt Style Rotary Torque Transducer, 20Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-20Nm | Request Quote for Pricing |
Model T22 Pulley Belt Style Rotary Torque Transducer, 50Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-50Nm | $7,225.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 100Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-100Nm | $1,900.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 200Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-200Nm | $1,945.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 500Nm Capacity, +/-5VDC Output with Speed/Angle Option | T22-500Nm | $12,570.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 1K Capacity, +/-5VDC Output with Speed/Angle Option | T22-1K Nm | $14,265.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 2K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-2K Nm | $14,265.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 5K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-5K Nm | $14,265.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 100Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-100-A1A-XXX | $7,225.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 200Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-200-A1A-XXX | $7,225.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 20Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-20-A1A-XXX | $7,225.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 50Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-50-A1A-XXX | $7,225.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 500Nm Capacity, +/-5VDC Output with No Speed/Angle Option | T22-500-A1A-XXX | $12,570.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 1K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-1K A1A-XXX | $14,265.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 2K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-2K-A1A-XXX | $14,265.00 |
Model T22 Pulley Belt Style Rotary Torque Transducer, 5K Capacity, +/-5VDC Output with No Speed/Angle Option | T22-5K-A1A-XXX | $14,265.00 |
