Features and Benefits
- Capacities from 50 Nm to 10K Nm (44.3 lbf-in to 88.5K lbf-in)
- ±5V output (±10VDC Optional)
- Very short axial length
- Large thru-hole design
- Bearingless
T27 Bearingless Hollow Flange Style Rotary Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
T27 Bearingless Hollow Flange Style Rotary Torque Transducer
Flange-type
443 lbf-in to 8.85K lbf-in
50 Nm to 1000 Nm

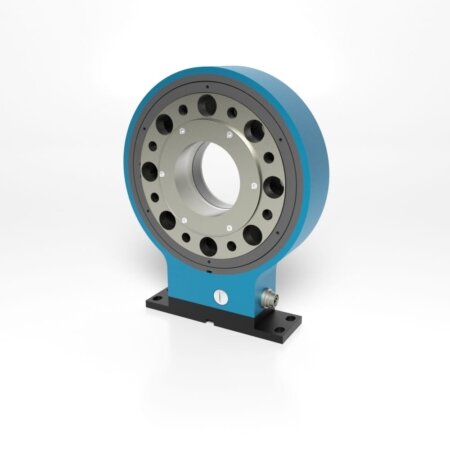

Model T27 Hollow Flange Rotary torque transducer is used to provide non-contact torque measurement in applications requiring a thru-hole design. Allows thermocouple wires, pneumatic or hydraulic lines to be routed through the sensor. Useful for cold engine test stands where hydraulic couplings are used to clamp to the splined engine shaft.
Product Downloads
Model T27 Hollow Flange Rotary torque transducer is used to provide non-contact torque measurement in applications requiring a thru-hole design. Allows thermocouple wires, pneumatic or hydraulic lines to be routed through the sensor. Useful for cold engine test stands where hydraulic couplings are used to clamp to the splined engine shaft.
- Bearingless, Flange Style, Pedestal/Foot
- Rotary (Dynamic)
- 0.00 lbs
- 2.00 × 6.30 × 9.10 in
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN RS422 ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | N/C | - |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL SPEED (OPTION) | 5V TTL |
| H | N/C | - |
| J | RS422 (OPTION)* | - RS422 |
| K | N/C | - |
| L | RS422 (OPTION)* | + RS422 |
| M | SHIELD | - |
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 2.00 × 6.30 × 9.10 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Performance Parameters
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 50 Nm to 10K Nm (44.3 lbf-in to 88.5K lbf-in)
- ±5V output (±10VDC Optional)
- Very short axial length
- Large thru-hole design
- Bearingless
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Performance Parameters
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| 12-PIN RS422 ELECTRICAL CONNECTION | ||
| PIN | FUNCTION | |
| A | N/C | - |
| B | N/C | - |
| C | + SIGNAL | ±5V (±10V) |
| D | SIGNAL (GND) | 0V |
| E | SUPPLY (GND) | 0V |
| F | + SUPPLY | 12 - 28VDC |
| G | SIGNAL SPEED (OPTION) | 5V TTL |
| H | N/C | - |
| J | RS422 (OPTION)* | - RS422 |
| K | N/C | - |
| L | RS422 (OPTION)* | + RS422 |
| M | SHIELD | - |
For more information visit Electrical Wiring Diagrams
Additional Information
| Dimensions | 2.00 × 6.30 × 9.10 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model T27 Hollow Flange Bearingless Rotary Torque Transducer 200 Nm Capacity, +/-5VDC Output with No Speed Measurement Option | T27-200-A1A | $12,345.00 |
| Model T27 Hollow Flange Bearingless Rotary Torque Transducer 2K Nm Capacity, +/-5VDC Output with No Speed Measurement Option | T27-2K-A1A | $13,620.00 |
| Model T27 Hollow Flange Bearingless Rotary Torque Transducer 50 Nm Capacity, +/-10VDC Output with Speed Measurement Option | T27-50-B2A | $13,260.00 |
× ![]()
Variation Image
Additional Products
