4850 Battery Powered Bluetooth Weight Indicator

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

4850 Battery Powered Bluetooth Weight Indicator

Digital, Environmentally Protected, Battery Powered, Wireless, Bluetooth

Get Your Free Quote

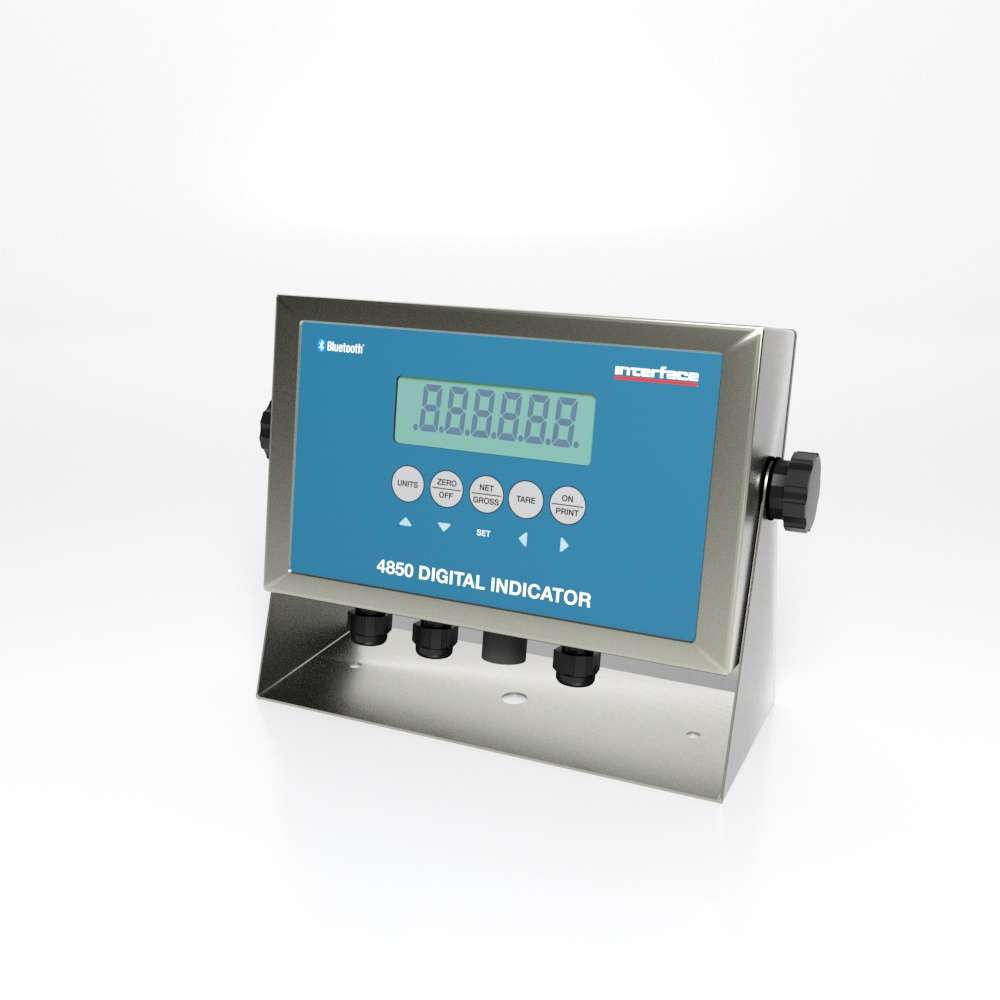

The Model 4850 Digital Indicator is a wireless capable digital indicator housed in a stainless steel NEMA 4X enclosure. It comes with a large 0.8” LCD display for easy readout of up to 50,000 display divisions, and can drive up to 8-350Ω load cells. All setup parameters may be entered via the front panel keys.
A full duplex RS-232 port or optional Bluetooth module can transmit data on demand or continuously to match the input requirements of a wide variety of peripheral devices including printers, remote displays and computers.

Product Downloads

The Model 4850 Digital Indicator is a wireless capable digital indicator housed in a stainless steel NEMA 4X enclosure. It comes with a large 0.8” LCD display for easy readout of up to 50,000 display divisions, and can drive up to 8-350Ω load cells.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , Tag:

Features and Benefits

  • Stand – Stainless Steel Swivel Stand
  • Display – Easy To Read LCD
  • Full Front Panel Configuration
  • Displays – Up To 50,000 Graduations
  • Multipoint Cal – Linearization
  • Units- lb, kg, g, and oz
  • Enclosure – Stainless Steel
  • Load Cells – Drives Up To Eight 350 Ω Load Cells
  • Digital Calibration – Full Front Panel Calibration
  • Power Requirements – 4-14 Vdc
  • Battery – 6-volt 3 Ah Internal Rechargeable Lead Acid
  • High Quality/Low Cost
  • Special Applications – Remote Display, Peak Hold, Checkweighing, Accumulation, Self-Diagnostics
  • Time/Date

Options

  • Analog output: 16-Bit, 0-5 VDC, 4-20 mA
  • Built-in Relays (6V or 12V)

Specifications

Specifications


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions

Dimensions


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Shipping Information

Weight 3.60 lbs
Dimensions 3.75 × 11.00 × 7.00 in
Configuration

, , ,

Configuration Weight Range: lbs: 8 kg: 3.62

Product Video

Features and Benefits

  • Stand – Stainless Steel Swivel Stand
  • Display – Easy To Read LCD
  • Full Front Panel Configuration
  • Displays – Up To 50,000 Graduations
  • Multipoint Cal – Linearization
  • Units- lb, kg, g, and oz
  • Enclosure – Stainless Steel
  • Load Cells – Drives Up To Eight 350 Ω Load Cells
  • Digital Calibration – Full Front Panel Calibration
  • Power Requirements – 4-14 Vdc
  • Battery – 6-volt 3 Ah Internal Rechargeable Lead Acid
  • High Quality/Low Cost
  • Special Applications – Remote Display, Peak Hold, Checkweighing, Accumulation, Self-Diagnostics
  • Time/Date

Options

  • Analog output: 16-Bit, 0-5 VDC, 4-20 mA
  • Built-in Relays (6V or 12V)

Specifications

Specifications


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions

Dimensions


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Shipping Information

Weight 3.60 lbs
Dimensions 3.75 × 11.00 × 7.00 in
Configuration

, , ,

Configuration Weight Range: lbs: 8 kg: 3.62

Product Video

Short Description Sku Price
4850 Bidirectional Battery Powered Digital Weight Indicator with External 115 VAC Power for Charger 4850-1 $1,050.00
4850 Bidirectional Battery Powered Digital Weight Indicator with External 230+ VAC Power for Charger 4850-2 $1,050.00
