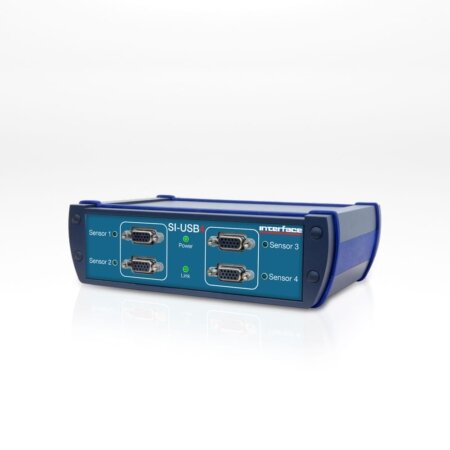

SI-USB4 4 Channel USB Interface Module
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
The interface module SI-USB4 is connected between sensor and PC. In this way, analog sensor signals will be digitized with up to 16 bit resolution. By the measuring rate of 5000 measurements/s per measuring channel, high-dynamic measurements can be achieved. The measured values are transferred to a PC via the USB interface and visualized by means of software. If a control signal is integrated in the sensor, an automatic adjustment can be carried out and checked at any time (measuring chain monitoring).
The interface module SI-USB4 is connected between sensor and PC. In this way, analog sensor signals will be digitized with up to 16 bit resolution. By the measuring rate of 5000 measurements/s per measuring channel, high-dynamic measurements can be achieved. The measured values are transferred to a PC via the USB interface and visualized by means of software. If a control signal is integrated in the sensor, an automatic adjustment can be carried out and checked at any time (measuring chain monitoring).
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
| Pin | Description | Function |
| 1 | Ground (supply 4V and 12V) | 0V; 1-Wire GND |
| 2 | +12V (active supply) | 12VDC |
| 3 | NC | - |
| 4 | Signal angle A | 5V TTL |
| 5 | Signal angle B | 5V TTL |
| 6 | Ground | 0V |
| 7 | NC | - |
| 8 | Supply | 4VDC |
| 9 | NC | - |
| 10 | Control signal or TEDS | L <2.0V; H >3.5V or 1-Wire DATA |
| 11 | Signal (+) (active or passive) | mV/V; ±5V; ±10V; 0/4 - 20 mA |
| 12 | Signal (-) (when active connect to ground) | 0V |
| 13 | Ground | 0V |
| 14 | NC | - |
| 15 | +5V reference voltage | 5VDC |
For more information visit Electrical Wiring Diagrams
| Dimensions | 5.10 × 7.40 × 2.30 in |
|---|
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
| Pin | Description | Function |
| 1 | Ground (supply 4V and 12V) | 0V; 1-Wire GND |
| 2 | +12V (active supply) | 12VDC |
| 3 | NC | - |
| 4 | Signal angle A | 5V TTL |
| 5 | Signal angle B | 5V TTL |
| 6 | Ground | 0V |
| 7 | NC | - |
| 8 | Supply | 4VDC |
| 9 | NC | - |
| 10 | Control signal or TEDS | L <2.0V; H >3.5V or 1-Wire DATA |
| 11 | Signal (+) (active or passive) | mV/V; ±5V; ±10V; 0/4 - 20 mA |
| 12 | Signal (-) (when active connect to ground) | 0V |
| 13 | Ground | 0V |
| 14 | NC | - |
| 15 | +5V reference voltage | 5VDC |
For more information visit Electrical Wiring Diagrams
| Dimensions | 5.10 × 7.40 × 2.30 in |
|---|
