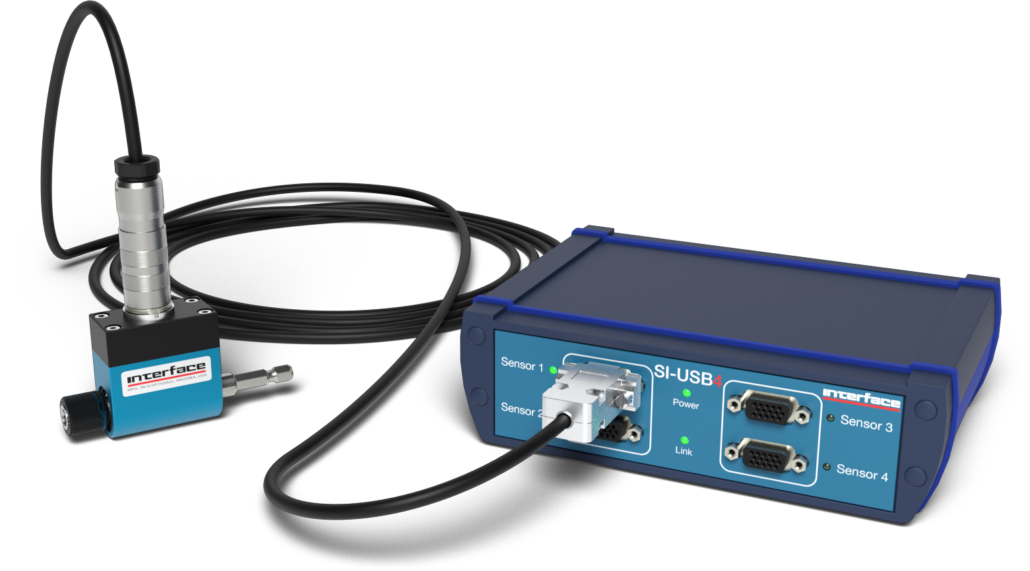

T29 Slip Ring Hex Drive Rotary Torque Transducer and SI-USB4 4 Channel USB Interface Module System Couplings

Slip Ring Hex Drive Rotary Torque Transducer and 4 Channel USB Interface Module System

The T29 Slip Ring Hex Drive Rotary Torque Transducer accurately measures rotary torque in screw driving systems and rotating machinery applications. Its analog output connects to the SI-USB4 4-Channel USB Interface Module, which converts measurement data for PC-based monitoring, recording, and analysis. Together, they provide a compact and precise torque measurement solution.

  • T29 Slip Ring Hex Drive Rotary Torque Transducer:
    • Slip ring torque sensor for screw driving systems
    • High accuracy
    • Output-hexagon socket with quick action chuck
    • Drive-hexagon
    • Very short axial length
    • High torsional stiffness
    • Simple handling and assembly
  • SI-USB4 4 Channel USB Interface Module:
    • Fast measurement of up to 5000 meas./s per measuring channel
    • Input ranges for mV/V, V and mA
    • Input ranges for linear potentiometer, temperature probe PT100 and quadrature encoder
    • Input ranges combinable with one another
    • Digitally switchable analogue input filter
    • Full synchronization of all measuring channels
    • Adjustment and control signal activation via software
    • Shunt Cal

Applications:

  • Process measuring and control technology
  • Automotive industry
  • Measuring and control devices
  • Tool engineering
  • Special mechanical engineering

System Components

T29 Slip Ring Hex Drive Rotary Torque TransducerSI-USB4 4 Channel USB Interface ModuleCable AssembliesMating ConnectorsSI-USB-VS SoftwareSystem Level Calibration

T29 Slip Ring Hex Drive Rotary Torque Transducer

Slip Ring

8.85 lbf-in to 14.75 lbf-in
1 Nm to 20 Nm

The T29 Slip Ring Hex Drive Rotary Torque Transducer is a compact, high-accuracy torque sensor designed specifically for screw driving systems and dynamic rotary torque measurement applications. Featuring a slip ring design with a drive hexagon and output hexagon socket with quick-action chuck, the T29 enables simple integration, fast tool changes, and reliable continuous rotation measurement in demanding industrial environments. Its very short axial length and high torsional stiffness provide precise torque transfer while minimizing installation space requirements. Ideal for process measuring and control technology, automotive manufacturing, tool engineering, and specialized machinery, the T29 delivers dependable performance for monitoring, testing, and control applications. Optional TEDS functionality according to IEEE 1451.4 is available for simplified sensor identification and setup.

Features & Benefits

  • Slip ring torque sensor for screw driving systems
  • High accuracy
  • Output-hexagon socket with quick action chuck
  • Drive-hexagon
  • Very short axial length
  • High torsional stiffness
  • Simple handling and assembly

SI-USB4 4 Channel USB Interface Module

4 Channel PC Interface Module

The interface module SI-USB4 is connected between sensor and PC. In this way, analog sensor signals will be digitized with up to 16 bit resolution. By the measuring rate of 5000 measurements/s per measuring channel, high-dynamic measurements can be achieved. The measured values are transferred to a PC via the USB interface and visualized by means of software. If a control signal is integrated in the sensor, an automatic adjustment can be carried out and checked at any time (measuring chain monitoring).

Features & Benefits

  • Fast measurement of up to 5000 meas./s per measuring channel
  • Input ranges for mV/V, V and mA
  • Input ranges for linear potentiometer, temperature probe PT100 and quadrature encoder
  • Input ranges combinable with one another
  • Digitally switchable analogue input filter
  • Full synchronization of all measuring channels
  • Adjustment and control signal activation via software
  • Shunt Cal

Cable Assemblies

Accessories

Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.

Features & Benefits

Interface uses the highest grade cables and connectors to ensure the performance of your force and torque systems are at the highest level.

  • Designed to work with Interface products
  • Made with the highest quality components and processes
  • Created to maintain the specification of the product they are intended for
  • For connecting transducers to instrumentation
  • Standard and custom lengths
  • Shielded cable

Mating Connectors

Accessories

Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.

Models MC-001, MC-002, CN-207, CN-208, and CN-214 are available.

Features & Benefits

Interface uses the highest grade mating connectors to ensure that the performance of your force and torque solutions are not compromised.

  • Designed to work with Interface products
  • Made with the highest quality components and processes
  • Created to maintain the specification of the product they are intended for
  • Mating connector and cable
  • Dressed pigtails
  • Interconnects between load cell and instruments

SI-USB-VS3 Software

The SI-USB-VS3 software offers versatile configuration for the VS3, enabling sensor scaling, adjustment, and data evaluation. It displays actual, tare, min and max values, with diagram visualization. Users can store data in CSV, save or print diagrams in configurable formats, and view detailed sensor information for comprehensive measurement analysis.

Features & Benefits

  • Configuration possibilities for the VS3
  • Storage of sensor-related scaling and adjustment data
  • For the presentation of measured data (actual value, tare value, minimal and maximal value)
  • Display and storage of measured data evaluations
  • Presentation of the measured data in a diagram
  • Storage of measured data in CSV-format (output configurable)
  • Storage of the diagram in BMP-format (output size configurable)
  • Print-out of the diagram (output size defined)
  • Presentation of the sensor information

SI-USB-VS 2.12 Software Download

 SI-USB USB Driver 6.1 Download

System Level Calibration

Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
