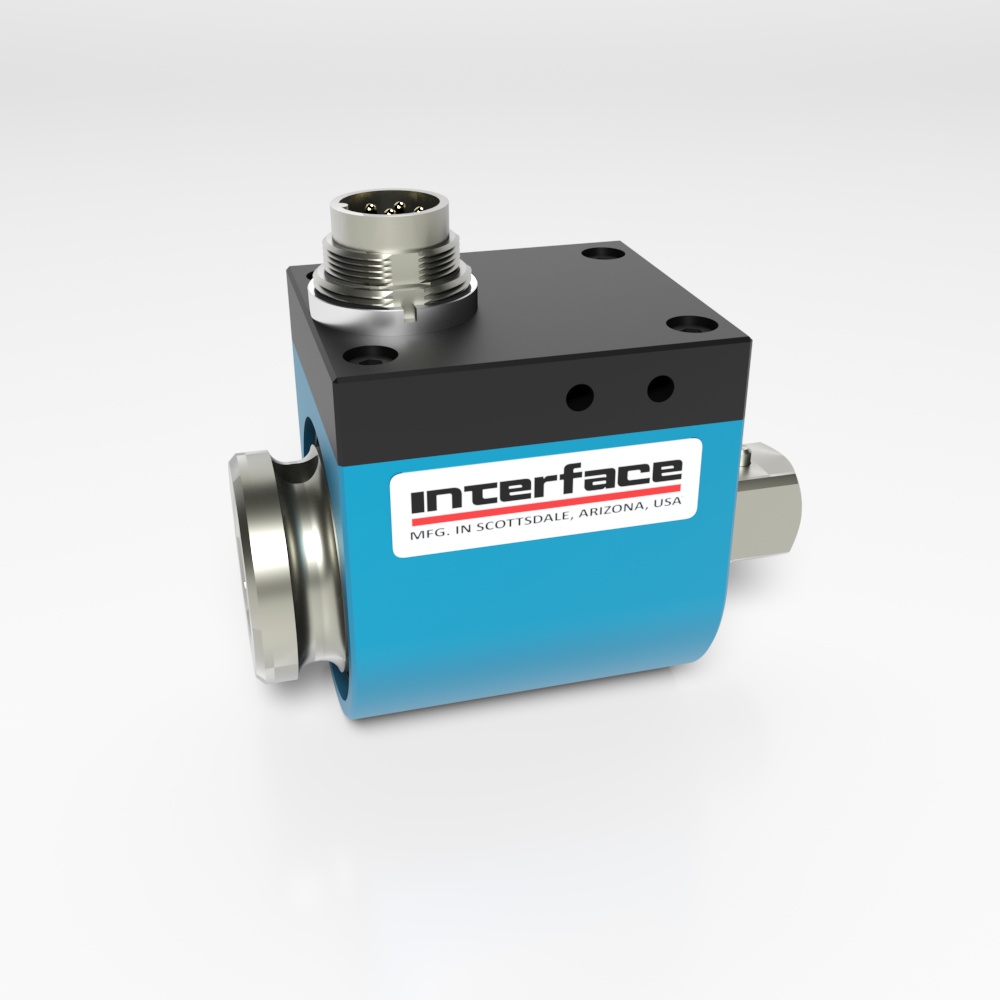

T35 Slip Ring Square Drive Rotary Torque Transducer

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

T35 Slip Ring Square Drive Rotary Torque Transducer

Square Drive-Type Slip Ring

Get Your Free Quote

8.85 lbf-in to 44.3K lbf-in
1 Nm to 5K Nm

The T35 Slip Ring Square Drive Rotary Torque Transducer is a high-accuracy torque sensor designed for screw driving systems, assembly processes, and industrial torque measurement applications. Featuring a compact, short axial length design with high torsional stiffness, the T35 provides reliable dynamic torque measurement while rotating. Its square drive input and output simplify integration with powered tools and test equipment, while slip ring technology enables continuous signal transmission during operation. Available in a wide range of capacities, the T35 is ideal for automotive, process control, tool engineering, and specialized machinery applications.

Product Downloads

The T35 Slip Ring Square Drive Rotary Torque Transducer is a high-accuracy torque sensor designed for screw driving systems, assembly processes, and industrial torque measurement applications.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , Tags: ,

Features and Benefits

  • Capacities from 1 to 5K Nm (8.85 to 44.3K lbf-in)
  • Slip ring torque sensor for screw driving systems
  • High accuracy
  • Drive-square socket
  • Output-square drive
  • Very short axial length
  • High torsional stiffness
  • Simple handling and assembly
  • Special versions on request

Options

  • Control Signal
  • TEDS (Transducer Electronic Data Sheet)
  • Standard IEEE 1451.4

Typical Applications

  • Assembly technology
  • Process measuring and control technology
  • Automotive industry
  • Measuring and control devices
  • Tool engineering
  • Special mechanical engineering

Specifications

Specifications

Accuracy – (max error)
Combined error – %FS ±0.1
Nonrepeatability – % ±0.05
Temperature
Effect on zero – %RO / deg °C ±0.02
Effect on output – % / deg °C ±0.01
Rated range °C +5 to +50
°F +41 to +122
Operating range °C -10 to +60
°F +14 to +140
Electrical
Output – mV/V 1 Nm ±0.5
8.85 lbf-in
2 - 500 Nm ±1.0
17.7 - 4.43K lbf-in
Excitation Voltage- VDC MAX 12
Bridge resistance – Ohm 350
Electrical connection – pin 12
Mechanical
IP Rating IP50
Safe overload – %RO 150
Shaft material Alloy steel
Housing material Aluminum

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Performance Parameters

Capacity MAX RPM MIN-¹ Spring Rate Moment of Inertia – J (Kg•m2) MAX Thrust Load² MAX Shear Load²
Nm lbf-in NM/rad Drive Side Test Side N lbf N lbf
1 8.85 2000 2.1E+02 4.1E-07 1.4E-06 380 85.43 6.7 1.51
2 17.7 2000 2.1E+02 4.1E-07 1.4E-06 380 85.43 6.7 1.51
5 44.3 2000 5.5E+02 4.2E-07 1.4E-06 690 155.12 16.5 3.71
12 106.2 2000 6.9E+02 4.3E-07 1.4E-06 820 184.34 22 4.94
25 221.3 1500 4.7E+03 1.2E-05 6.3E-06 2100 472.10 84 18.88
63 557.6 1500 1.1E+03 1.2E-05 6.6E-05 3900 876.75 210 47.21
100 885.1 1500 1.8E+04 1.6E-05 7.3E-06 5200 1169.01 290 65.19
160 1141K 1500 1.9E+04 1.6E-05 7.4E-06 5500 1236.45 330 74.19
200 1.77K 1500 1.9E+04 1.6E-05 7.4E-06 5500 1236.45 330 74.19
500 4.43K 1000 1.1E+04 1.1E-04 4.2E-05 14200 3192.29 1100 247.90
1000 8.85K 1000 1.2E+04 2.3E-04 6.9E-05 16300 3664.39 1000 224.81
2000 17.7K 500 3.9E+05 3.2E-03 1.2E-03 37500 8430.34 1800 404.66
5000 44.3K 500 4.7E+05 3.3E-03 1.3E-03 50000 11240.45 2800 629.47

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions-1 Nm - 1K Nm


See Drawing Metric (Nm) U.S. (lbf-in) Metric (Nm) U.S. (lbf-in) Metric (Nm) U.S. (lbf-in) Metric (Nm) U.S. (lbf-in) Metric (Nm) U.S. (lbf-in)
1, 2, 5, 12 0.7, 1.5, 3.7, 8.8 25, 63 18.4, 46.5 100, 160, 200 73.8, 118, 147.5 500 368.8 1000 737.6
mm in mm in mm in mm in mm in
(1) 24.0 0.94 42.0 1.65 42.0 1.65 60.0 2.36 60.0 2.36
(2) 39.0 1.54 54.0 2.13 54.0 2.13 68.0 2.68 68.0 2.68
(3) 12.0 0.47 21.0 0.83 21.0 0.83 30.0 1.18 30.0 1.18
(4) ~ 10.0 ~ 0.39 ~ 10.0 ~ 0.39 ~ 10.0 ~ 0.39 ~ 10.0 ~ 0.39 ~ 10.0 ~ 0.39
(5) 9.0 0.35 9.5 0.37 9.5 0.37 12.0 0.47 12.0 0.47
(6) 8.6 0.34 12.2 0.48 15.0 0.59 24.0 0.94 27.0 1.06
(7) 8.0 0.32 10.1 0.40 10.7 0.42 19.0 0.75 33.0 1.30
(8) 45.5 1.79 47.4 1.87 47.4 1.87 55.0 2.17 55.0 2.17
(9) 12.2 0.48 10.5 0.41 10.5 0.41 10.5 0.41 10.5 0.41
(10) 5.0 0.20 5.0 0.20 5.0 0.20 5.0 0.20 5.0 0.20
(11) 64.0 2.52 71.0 2.80 76.0 2.99 100.0 3.93 132.0 5.20
(12) Ø13.0 0.51 Ø22.0 0.87 Ø29.8 1.17 Ø44.0 1.73 Ø54.0 2.13
(13) Ø10.0 0.39 Ø20.0 0.79 Ø20.0 0.79 Ø35.0 1.38 Ø35.0 1.38
(14) 7.2 0.28 10.4 0.41 15.1 0.59 22.9 0.90 27.4 1.08
(15) 6.0 0.24 6.0 0.24 6.0 0.24 6.0 0.24 6.0 0.24
(16) 17.6 0.69 20.5 0.81 20.5 0.81 27.0 1.06 27.0 1.06
(17) M4 (4 x) M4 (4 x) M4 (4 x) M4 (4 x) M4 (4 x)
(18) Square 1/4" Square 3/8" Square 1/2" Square 3/4" Square 1"
(19) 6-Pin Connector
Weight kg oz kg lbs kg lbs kg lbs kg lbs
0.1 0.22 0.3 0.66 0.4 0.88 1.0 2.2 1.4 3.1

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions-2K Nm - 5K Nm


See Drawing Metric (Nm) U.S. (lbf-in)
2000, 5000 17.7K, 44.3K
mm in
(1) Ø115.0 4.53
(2) 127.5 5.02
(3) 57.5 2.26
(4) 56.0 2.20
(5) ~ 17.0 0.67
(6) 55.0 2.17
(7) 41.5 1.63
(8) 140.0 5.51
(9) 70.0 2.76
(10) ~ 12.0 0.47
(11) 250.0 9.84
(12) Ø84.0 3.31
(13) Ø60.0 2.36
(14) 39.0 1.54
(15) Square 1 1/2"
(16) 6-Pin Connector
Weight kg lbs
8.1 17.86

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

6-PIN ELECTRICAL CONNECTION
PIN FUNCTION
1 - EXCITATION
2 + EXCITATION
3 SHIELDING
4 + SIGNAL
5 - SIGNAL
6 CONTROL SIGNAL OR TEDS (OPTION)

For more information visit Electrical Wiring Diagrams
