Features and Benefits
- Capacities from 288.5 lbf-in to 885 lbf-in (10 Nm to 100 Nm)
- Wired and non-rotating)
- Flange to Flange Mounting
TSCF C-Face Flange Torque Transducer
PRICING NOTICE
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.
TSCF C-Face Flange Torque Transducer
Wired and non-rotating
88.5 lbf-in to 885 lbf-in
10 Nm to 100 Nm
The TSCF is used in test benches for measuring the reaction torque (Wired and non-rotating).

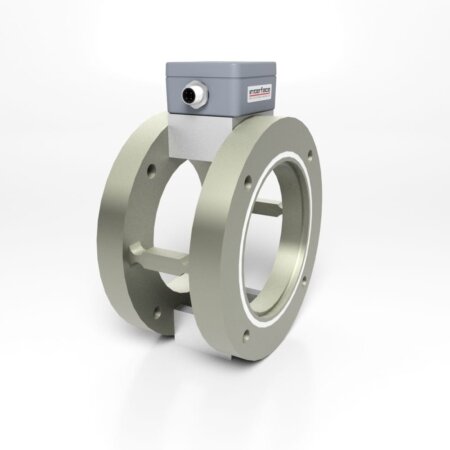

The torque transducer consists of two flanges, which are connected with each other via 4 measuring spokes. The two flanges have the same bolt circle of 5.8 in (149 mm). The pilots are designed as an external and internal collar with Ø 4.5 in (Ø 114.3 mm).
Due to the large diameter of the torque transducer TSCF and the arrangement of the measuring spokes in the axial direction, this torque transducer can also absorb bending moments up to 1770 lbf-in (200 Nm), which are caused by the dead weight of the drive motor.
The connection is made via a terminal box with M12 connectors.
Optionally, an integral measuring amplifier can be provided instead of the terminal box so that the transducer has a voltage output of +/-10V.
Product Downloads
The TSCF is used in test benches for measuring the reaction torque (Wired and non-rotating).
The torque transducer consists of two flanges, which are connected with each other via 4 measuring spokes. The two flanges have the same bolt circle of 5.8 in (149 mm). The pilots are designed as an external and internal collar with Ø 4.5 in (Ø 114.3 mm).
Due to the large diameter of the torque transducer TSCF and the arrangement of the measuring spokes in the axial direction, this torque transducer can also absorb bending moments up to 1770 lbf-in (200 Nm), which are caused by the dead weight of the drive motor.
The connection is made via a terminal box with M12 connectors.
Optionally, an integral measuring amplifier can be provided instead of the terminal box so that the transducer has a voltage output of +/-10V.
- Flange Style, Floating
- Reaction (Static)
- 8.30 × 3.90 × 5.90 in
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| CABLE CONNECTION | ||
| SYMBOL | FUNCTION | COLOR |
| +Us | + EXCITATION | BROWN |
| -Us | - EXCITATION | WHITE |
| +Ud | + OUTPUT | BLUE |
| -Ud | - OUTPUT | BLACK |
Additional Information
| Dimensions | 8.30 × 3.90 × 5.90 in |
|---|
Product Video
- Features and Benefits
- Specifications
- Dimensions
- Connector Pin Diagram
- Shipping Information
- Product Video
Features and Benefits
- Capacities from 288.5 lbf-in to 885 lbf-in (10 Nm to 100 Nm)
- Wired and non-rotating)
- Flange to Flange Mounting
Specifications
Specifications
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Dimensions
Dimensions
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Connector Pin Diagram
| CABLE CONNECTION | ||
| SYMBOL | FUNCTION | COLOR |
| +Us | + EXCITATION | BROWN |
| -Us | - EXCITATION | WHITE |
| +Ud | + OUTPUT | BLUE |
| -Ud | - OUTPUT | BLACK |
Additional Information
| Dimensions | 8.30 × 3.90 × 5.90 in |
|---|
Product Video
| Short Description | Sku | Price |
|---|---|---|
| Model TSCF C-Face Flange Torque Transducer, 10 Nm Capacity, mV/V Output | TSCF-10 | $2,270.00 |
| Model TSCF C-Face Flange Torque Transducer, 20 Nm Capacity, mV/V Output | TSCF-20 | $2,270.00 |
| Model TSCF C-Face Flange Torque Transducer, 50 Nm Capacity, mV/V Output | TSCF-50 | $2,270.00 |
| Model TSCF C-Face Flange Torque Transducer, 100 Nm Capacity, mV/V Output | TSCF-100 | $2,865.00 |
× ![]()
Variation Image
