2816 2-Axis Axial Torsion Load Cell

Force & Torque Flange Mount

  • Measures force and torque
  • Minimal cross-talk
  • Extraneous load resistance



Request a Quote

Request a CAD File

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • 2816 3.3K-15K STP File
  • 2816 16kN-63kN STP File
  • 2816 Drawing

Specifications


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

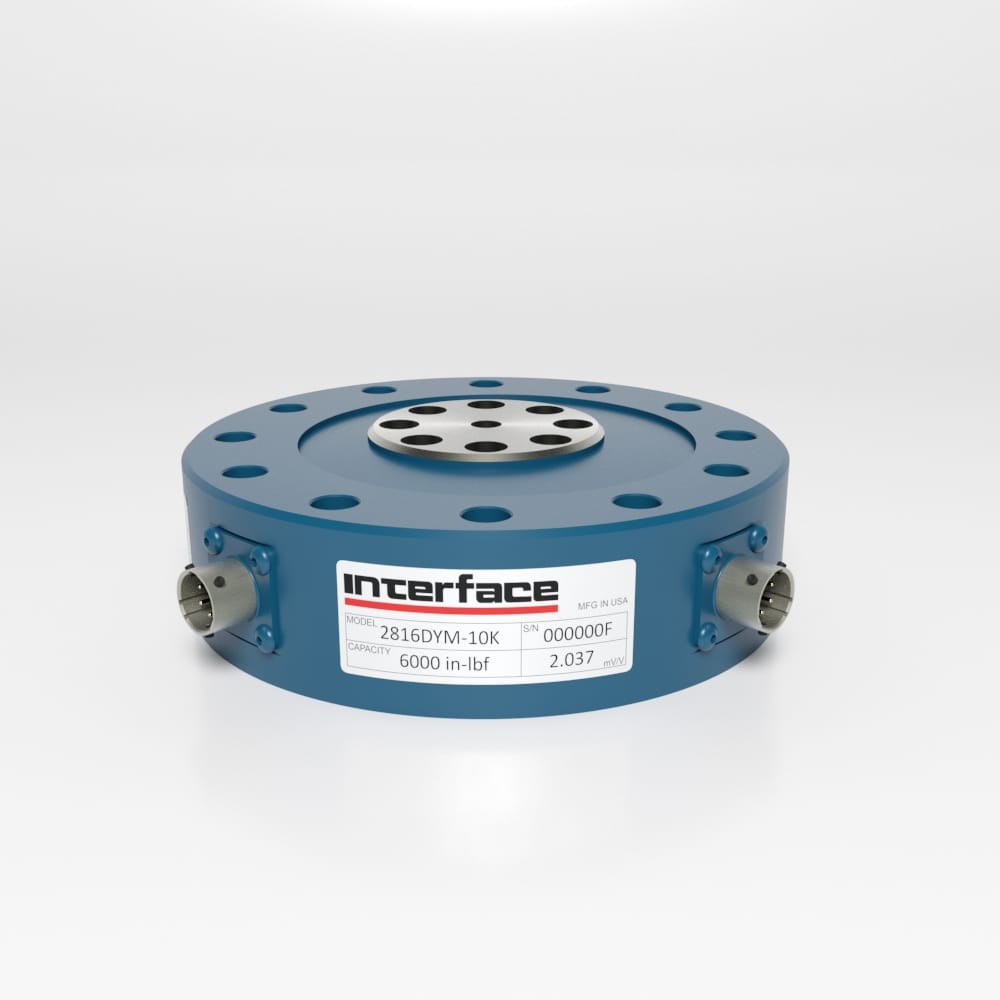

The 2816 Axial-Torsion load cell measure both force and torsion in the same load cell.  Either channel is capable of being used independently. This product is similar to Model 1216, but with a lower profile and capable of much higher forces and torques.

See datasheet for available models, additional capacities, connectors, options, and accessories.
