SSLP Stainless Steel Low Profile Universal Load Cell

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

SSLP Stainless Steel Low Profile Universal Load Cell

Stainless Steel Low Profile

Get Your Free Quote

1.124 lbf to 1124K lbf
5 kN to 5000 kN

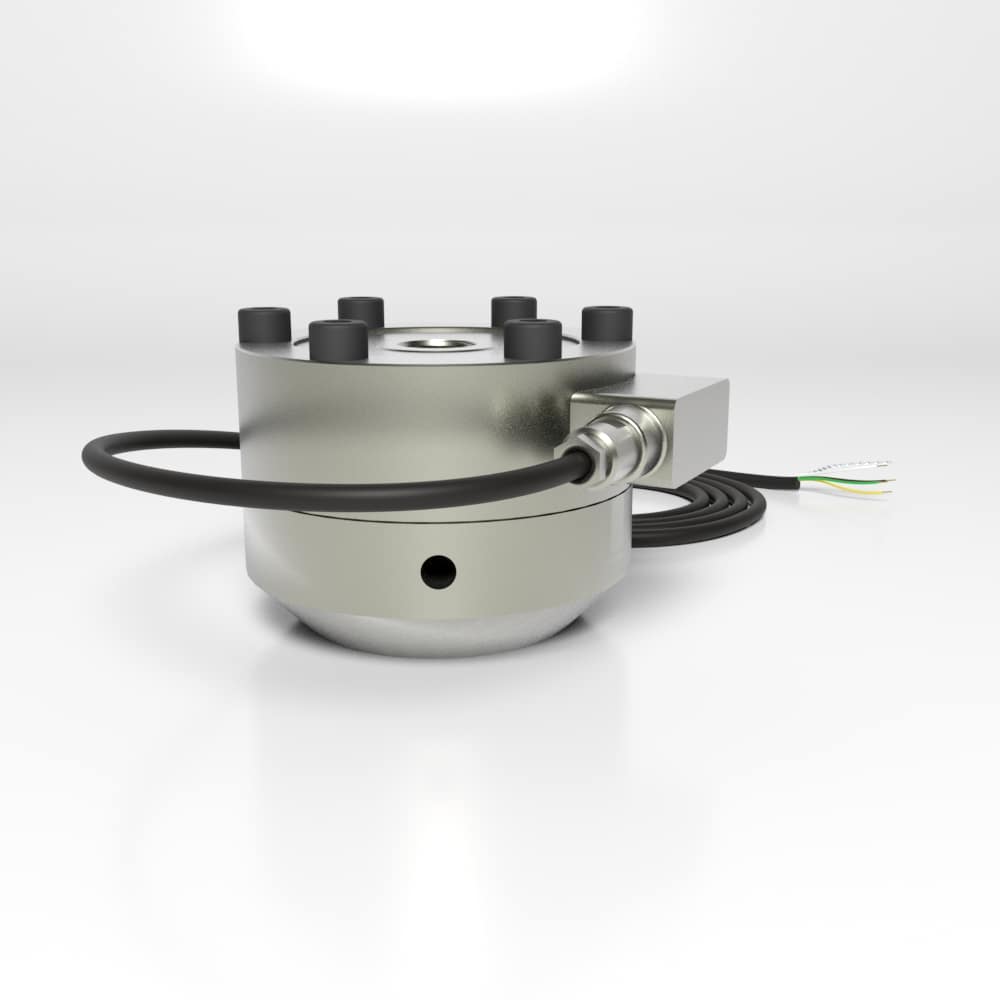

The SSLP series of load cells are based on the conventional low profile or pancake load cell principle. The internal construction is a diaphragm design, offering a lower cost solution to conventional shear web designs, while still offering high natural frequency, low deflection and excellent resistance to side and torsion forces. The SSLP is constructed from stainless steel to give excellent corrosion protection. There is an optional mounting base available, which is required if the load cell is to be used in tension. The mounting base is also constructed from stainless steel. The standard load cell is supplied with an integral cable and the facility to attach a protective hose or conduit. It is ideally suited to many testing applications where high stability and low height are essential requirements, the SSLP can be supplied calibrated as a complete ready-to-go system. Also available is a range of associated instrumentation.

Product Downloads

The SSLP series of load cells are based on the conventional low profile or pancake load cell principle.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , , , , Tag:

Features and Benefits

  • Capacities from 2.5 to 5000 kN (562 to 1,124K lbf)
    • 50 kN (11.24K lbf) capacity is suitable for use in tension up to 25 kN (5620 lbf)
    • Both the 3000 kN (674.4K lbf) and the 5000 kN (1142K lbf) capacities are suitable for use in tension up to 2500 kN (562K lbf)
  • Stainless Steel Construction
  • Environmentally Sealed to IP67
  • Low Profile
  • Hose/Conduit Fitting at Cable Exit
  • High Thermal Stability

Options

  • Base (Recommended)
  • Custom Base
  • Custom Top Plate
  • Load Cap Assembly
  • TEDS Option
  • Custom Cable Length
  • ATEX Version Available
  • Internally Amplified
  • Multiple Bridges
  • Submersible
  • Tension Calibration Available
  • Tension and Compression Calibration Available

Specifications

Specifications

Note: *Suitable for use in tension up to 25 kN (5620 lbf) on the 50 kN (11.24K lbf) capacity..

Note: **Suitable for use in tension up to 2500 kN (562K lbf) on both the 3000 kN (674.4K lbf) and the 5000 kN (1142K lbf) capacities.

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions 5 - 1000 kN (562 - 224.8K lbf)

Note: *Suitable for use in tension up to 25 kN (5620 lbf) on the 50 kN (11.24K lbf) capacity.

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 2000 - 5000 kN (449.6K - 1142K lbf)

Note: **Suitable for use in tension up to 2500 kN (562K lbf) on both the 3000 kN (674.4K lbf) and the 5000 kN (1142K lbf) capacities.

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions Bases and Load Cap Assemblies

BASE AND CAP ASSEMBLY NOT INCLUDED

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

Models SSLP1-SSLP4

SSLP1-SSLP4 2.5 - 1000 kN (562 - 224.8K lbf) PVC 4-CORE CABLE
FUNCTION COLOR
+ EXCITATION RED
- EXCITATION BLACK
+ OUTPUT WHITE
- OUTPUT YELLOW

Models SSLP5-SSLP6

SSLP5-SSLP6 2000 - 5000 kN (449.6K - 1124K lbf) PVC 6-CORE CABLE
FUNCTION COLOR
+ EXCITATION RED
- EXCITATION BLACK
+ SENSE ORANGE
- SENSE BLUE
+ OUTPUT WHITE
- OUTPUT YELLOW

For more information visit Electrical Wiring Diagrams

Additional Information
