WTS-WSS Wireless Wind Speed Transmitter Module
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

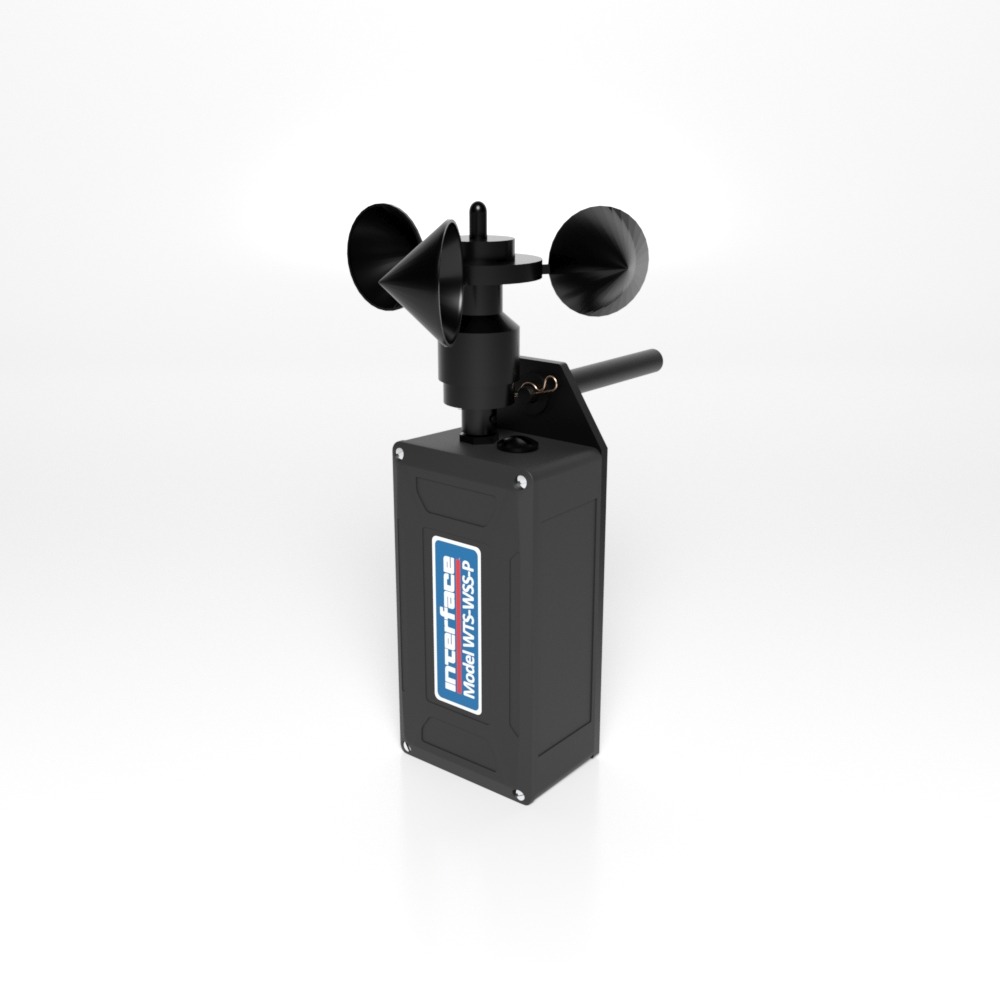

The wireless wind speed transmitter module (WTS-WSS) provides high accuracy measurement and offers a quick and effective solution for monitoring wind speeds in a wide variety of applications and industries.
The WTS-WSS uses a low power mode between transmissions to maximize battery life in the field whilst offering class leading wireless coverage range of up to 800 m (2,625 ft).

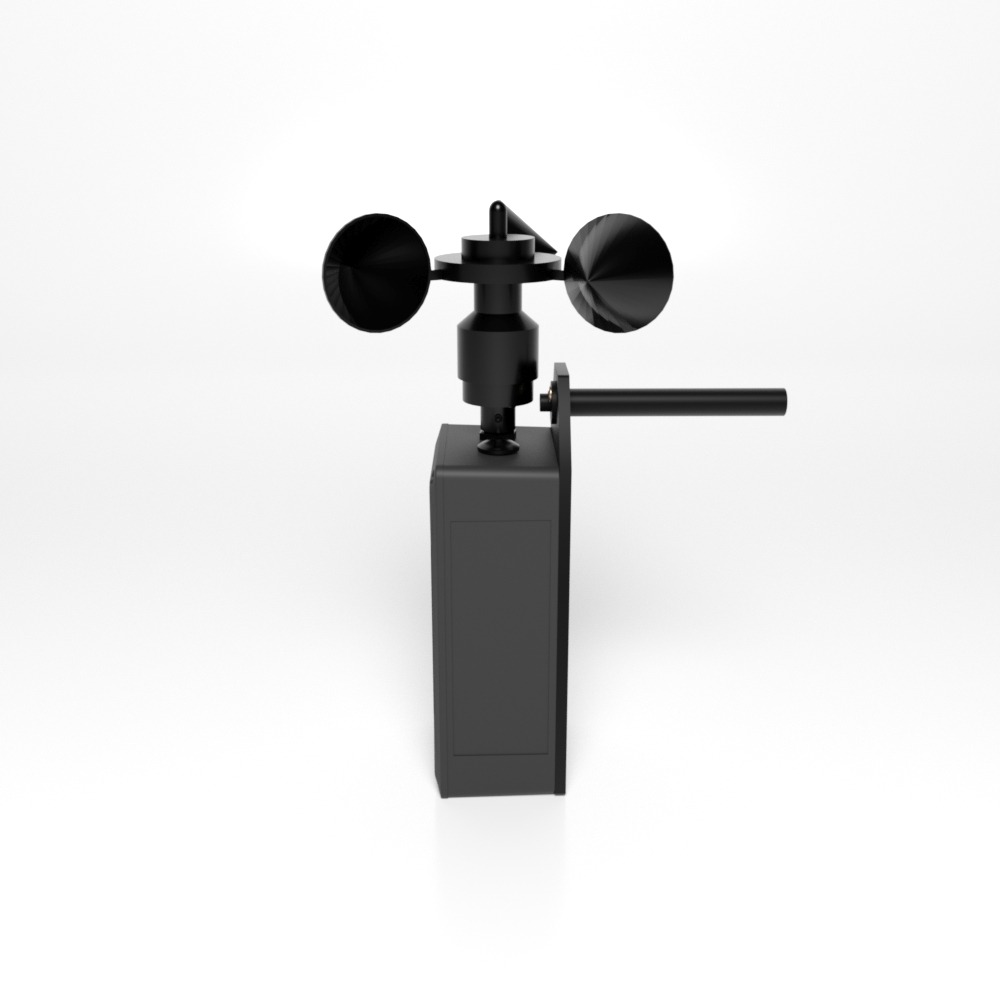

The Anemometer features a high quality 3-cup rotor in a rugged enclosure, providing rolling average wind speeds between 5 mph to 125 mph. It will also measure gusts at user defined periods of 1, 3, 5, or 10 sec. Wind speed measurement is available in m/s, fps, mph, km/h, or kn.
The device is powered either from internal batteries or an external supply. For applications which require high sampling rates for long periods, Interface’s power pack (WTS-PP1) and solar panel (WTS-SP1) offer an ideal solution.
Forming part of the WTS modular telemetry system, the data transmitted by the WTS-WSS can be received by multiple WTS receivers that include displays, handheld readers, analogue outputs, relay modules and computer interfaces.
The wireless wind speed transmitter module (WTS-WSS) provides high accuracy measurement and offers a quick and effective solution for monitoring wind speeds in a wide variety of applications and industries.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Power can be supplied by fitting two D cell alkaline 1.5 V batteries or the module can be supplied from an external 5 Vdc to 18 Vdc source. The module will switch to the external supply in preference providing a battery backup.
In both cases you need to fit the JP1 power jumper to supply power to the transmitter module.
When powered from the external DC source the LED will illuminate. The cable for the external supply should be routed into the cable gland at the bottom of the case, up past the battery holder and into the two part connector terminals shows in the diagram below.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Power is supplied by fitting two D cell alkaline 1.5 V batteries.
You may need to fit the JP1 power jumper to supply power to the transmitter module.
The LED does not illuminate in this module.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
For more information visit Electrical Wiring Diagrams
| Dimensions | 6.50 × 3.30 × 2.20 in |
|---|
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
Power can be supplied by fitting two D cell alkaline 1.5 V batteries or the module can be supplied from an external 5 Vdc to 18 Vdc source. The module will switch to the external supply in preference providing a battery backup.
In both cases you need to fit the JP1 power jumper to supply power to the transmitter module.
When powered from the external DC source the LED will illuminate. The cable for the external supply should be routed into the cable gland at the bottom of the case, up past the battery holder and into the two part connector terminals shows in the diagram below.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
Power is supplied by fitting two D cell alkaline 1.5 V batteries.
You may need to fit the JP1 power jumper to supply power to the transmitter module.
The LED does not illuminate in this module.
For battery information please refer to Appendix D – Battery Selection in the WTS Telemetry User Manual.
For more information visit Electrical Wiring Diagrams
| Dimensions | 6.50 × 3.30 × 2.20 in |
|---|
