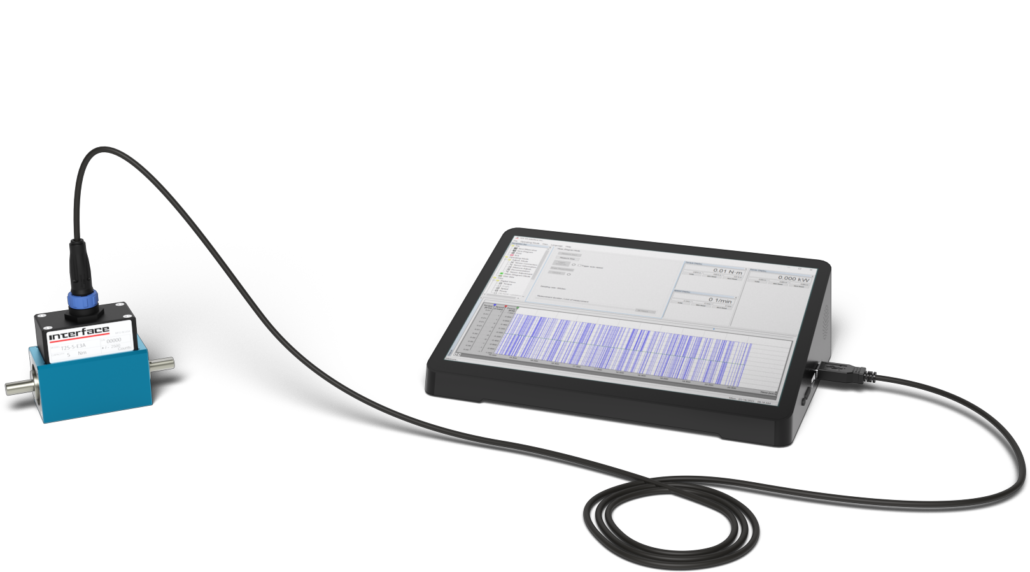

T25 USB Data AQ Pack System

T25 USB High Speed Shaft Style Rotary Torque Transducer Data AQ Pack

High Speed Rotary Torque Data Acquisition System

The T25 high-speed rotary torque transducer accurately measures dynamic torque in demanding applications, transmitting precise values for real-time analysis. These measurements integrate with the T-USB-VS software, which enables setup, adjustment, live readout, graphical display, and secure storage of torque data. Running on the Pipo X15 mini PC tablet, users benefit from a Windows 10 platform with ample processing power, storage, and connectivity. Together, these components form a portable, efficient, and versatile torque measurement system for advanced monitoring and control.

T25 USB High Speed Shaft Style Rotary Torque Transducer:
- Capacities from 0.1 Nm to 5K Nm (0.885 lbf-in to 44.3K lbf-in)
- 0.1% combined error
- Speed up to 30K RPM
- Unique design eliminates RPM dependent bearing friction effects
- Foot or Float mount
- ±5VDC, ±10VDC or USB Output
- 12-28 VDC supply
- Contactless data transmission
- 10 kHz sample rate
- 16-bit resolution
T-USB-VS Software:
- Sensor interfacing & activation via USB or RS-485 for torque sensors (including those with speed/angle measurement capability)
- Visualization & analysis tools, such as:
  - Live display of measured values (e.g., torque, tare, min/max values)
  - Real-time graphing of data
  - Automatic scaling of axes for clarity
- Data exporting capabilities:
  - Save measurements as CSV files, facilitating further analysis in spreadsheet software
  - Export graphical representations as BMP images
- Calculation & calibration tools:
  - Compute mechanical power derived from simultaneous torque and speed/angle measurements
  - Calibration functions unique to each sensor
  - Resettable min/max memory
  - Tare function
  - Variable averaging settings
X15 Pipo:
- Intel Core i3 processor Broadwell i3-5005U 2.00 GHz
- 11.8 inch FHD IPS screen display with 1920 x 1280 pixels resolution
- Windows 10, Memory: 8GB + 180GB SSD
- Easy pairing with most Bluetooth-enabled devices (computer, mobile phone, keyboard, and others)
- 2.4GHz WiFi + 100Mbps Ethernet, fast network access
- Bluetooth, WIFI, Lan port RJ45, RS232, USB port 6, and HDMI

Applications:

Aerospace
Robotics
Automotive Testing

Biomechanical Research
Dynamic Testing Environments
Precision Research

System Components

T25 USB High Speed Shaft Style Rotary Torque Transducer Cable Assemblies Pipo T-USB-VS Software System Level Calibration

T25 USB High Speed Shaft Style Rotary Torque Transducer

Shaft-Type Rotary Torque

0.885 lbf-in to 44.3K lbf-in
0.1 Nm to 5K Nm

Model T25 features a special bearing design which eliminates bearing influence on the measurement and allows very high rpm ratings. The square housing also facilities either floating or foot-mounted installation. Available with either ±5V, ±10V or USB output.

Features & Benefits

Capacities from 0.1 Nm to 5K Nm (0.885 lbf-in to 44.3K lbf-in)
0.1% combined error
Speed up to 30K RPM
Unique design eliminates RPM dependent bearing friction effects
Foot or Float mount
±5VDC, ±10VDC or USB Output
12-28 VDC supply
Contactless data transmission
10 kHz sample rate
16-bit resolution

Cable Assemblies

Accessories

Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.

Features & Benefits

Interface uses the highest grade cables and connectors to ensure the performance of your force and torque systems are at the highest level.

Designed to work with Interface products
Made with the highest quality components and processes
Created to maintain the specification of the product they are intended for
For connecting transducers to instrumentation
Standard and custom lengths
Shielded cable

X15 Pipo

Mini Windows Based PC

The Pipo X15 is a unique, multifunctional mini PC/tablet hybrid that blends portability with industrial-grade functionality. Its combination of touchscreen display, mounting capability, and rich connectivity makes it suitable for a wide range of environments from storefronts and kiosks to home media setups.

Features & Benefits

Intel Core i3 processor Broadwell i3-5005U 2.00 GHz
11.8 inch FHD IPS screen display with 1920 x 1280 pixels resolution
Windows 10, Memory: 8GB + 180GB SSD
Easy pairing with most Bluetooth-enabled devices (computer, mobile phone, keyboard, and others)
2.4GHz WiFi + 100Mbps Ethernet, fast network access
Bluetooth, WIFI, Lan port RJ45, RS232, USB port 6, and HDMI

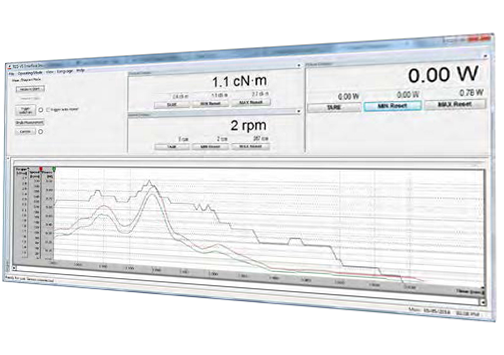

T-USB-VS Software

Adjustment, Control, Read-Out, Display, and Storing of Measured Values Software

T-USB-VS is Interface’s configuration and evaluation software designed for use with their USB-or RS-485-equipped torque sensors. Compatible with the T12 Square Drive Rotary Torque Transducer, T15 Hex Drive Rotary Torque Transducer, and the T25 High Speed Rotary Torque Transducer.

Features & Benefits

Sensor interfacing & activation via USB or RS-485 for torque sensors (including those with speed/angle measurement capability)
Visualization & analysis tools, such as:
- Live display of measured values (e.g., torque, tare, min/max values)
- Real-time graphing of data
- Automatic scaling of axes for clarity
Data exporting capabilities:
- Save measurements as CSV files, facilitating further analysis in spreadsheet software
- Export graphical representations as BMP images
Calculation & calibration tools:
- Compute mechanical power derived from simultaneous torque and speed/angle measurements
- Calibration functions unique to each sensor
- Resettable min/max memory
- Tare function
- Variable averaging settings

System Level Calibration

Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
