SSMF Fatigue Rated S-Type Load Cell and DMA2 DIN Rail Mount Signal Conditioner System

Fatigue Rated S-Type Load Cell System

The SSMF Fatigue-Rated S-Type Load Cell accurately measures tension and compression forces in high-cycle fatigue testing applications. Its mV/V output connects to the DMA2 DIN Rail Mount Signal Conditioner, which amplifies and converts the signal into a stable analog output that connects directly to the customer’s PLC, DAQ, or control system for reliable, real-time force monitoring.

  • SSMF Fatigue Rated S-Type Load Cell:
    • Fatigue-rated: 1×107 fully reversed cycles
    • Proprietary Interface temperature compensated strain gages
    • Capacities 25 to 2.5K lbf
    • Environmentally sealed
    • 0.02% nonrepeatability
    • Near zero temp. effect on output – 0.0008%/°F (0.0015%/°C)
    • Very low creep – 0.025%
    • Tension
  • DMA2 DIN Rail Mount Signal Conditioner:
    • User Selectable Analog Output ±10V, ±5V, or 4-20 mA
    • 10-28VDC Power
    • Selectable Full Scale Input Range 5-50mV
    • DIN Rail Mountable
    • R-Cal Button / Resistor installed (60K ohm default)

Applications:

  • Automotive Testing
  • Aerospace

System Components

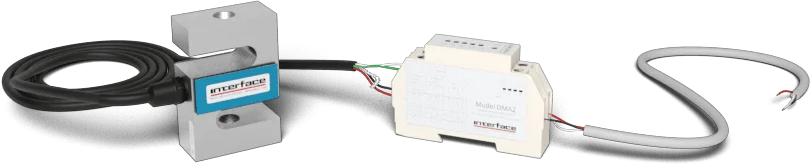

SSMF Fatigue Rated S-Type Load CellDMA2 DIN Rail Mount Signal ConditionerSystem Level Calibration

SSMF Fatigue Rated S-Type Load Cell

Fatigue Rated S-Type

25 lbf to 2.5K lbf
100 N to 10 kN

Model SSMF is a moderately priced fatigue rated sealed load cell for test machine and other general purpose applications. This product is available in capacities ranging from 25 to 2.5K lbf (100 N to 10 kN).

Features & Benefits

  • Fatigue-rated: 1×107 fully reversed cycles
  • Proprietary Interface temperature compensated strain gages
  • Capacities 25 to 2.5K lbf
  • Environmentally sealed
  • 0.02% nonrepeatability
  • Near zero temp. effect on output – 0.0008%/°F (0.0015%/°C)
  • Very low creep – 0.025%
  • Tension

Options

  • Standardized output
  • Special temperature range
  • Cable length
  • Add connector cable
  • Transducer Electronic Data Sheet (TEDS)

Accessories

  • Instrumentation
  • Mounting hardware
  • Load button

Connector Options

  • 10 ft (3 m) integral cable
  • PC04E-10-6P connector – 250 lbf (11.1 kN) & higher on load cell body

DMA2 DIN Rail Mount Signal Conditioner

DIN Rail Mount

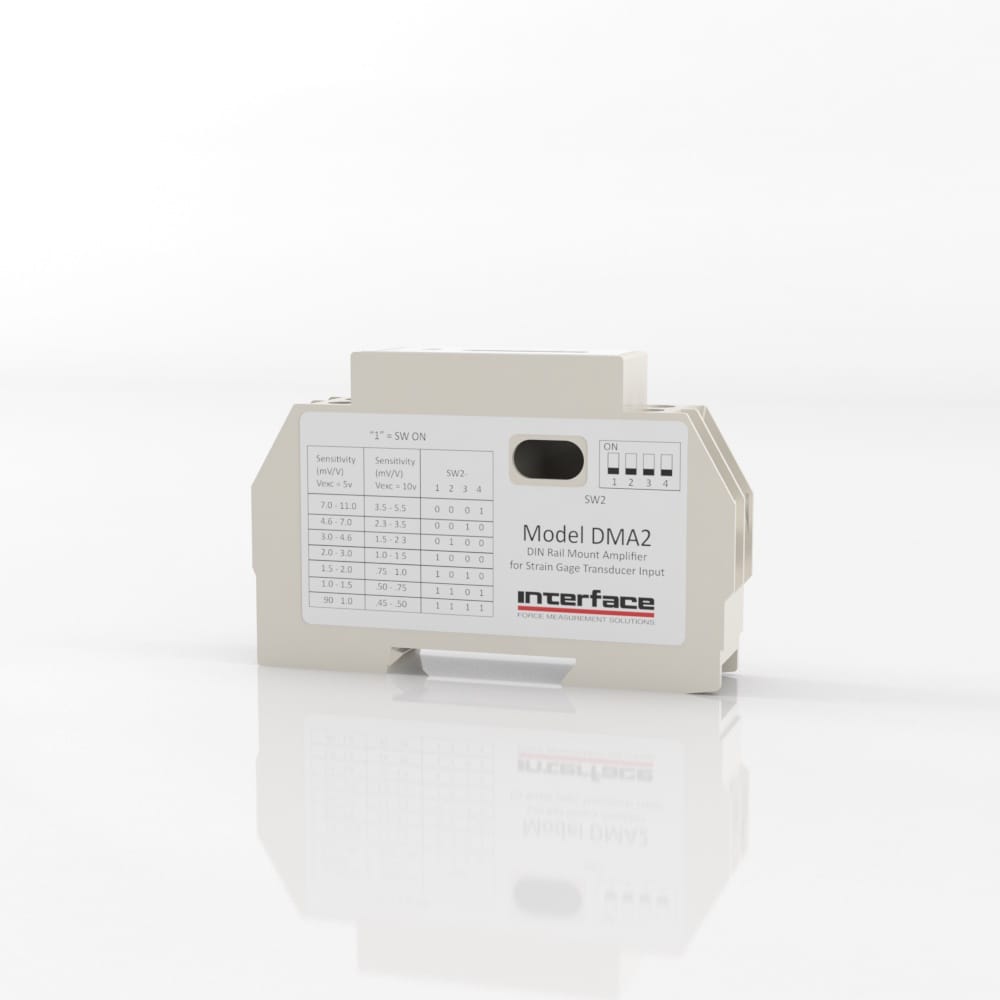

Model DMA2 is a DIN rail mountable signal conditioner with user selectable outputs of ±10V, ±5V or 4-20 mA. This product is 10-28VDC powered suitable for battery or automotive use. Model DMA2 also features 1000 Hz bandwidth and push-button shunt calibration.

Features & Benefits

  • User Selectable Analog Output ±10V, ±5V, or 4-20 mA
  • 10-28VDC Power
  • Selectable Full Scale Input Range 5-50mV
  • DIN Rail Mountable
  • R-Cal Button / Resistor installed (60K ohm default)

Note: The DMA2 can provide both VDC and 4-20mA outputs simultaneously. However, ground loop issues may occur because they both use a common ground. This will be mitigated if the DAQ is a differential input. Maximum drive and source current of the VDC output is +/-10 mA.

System Level Calibration

Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
