T1 Torque Coupling Style Rotary Torque Transducer

Coupling-type

  • Capacities from 50 Nm to 1K Nm (400 lbf-in to 9K lbf-in)
  • Shortest overall length
  • Integrated coupling
  • Hollow core / center
  • Bearingless



Request a Quote

Request a CAD File

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet
  • T1 50-150NmSTP File
  • T1 150-250Nm STP File
  • T1 200-400Nm STP File
  • T1 400-600Nm STP File
  • T1 600-1000Nm STP File

Specifications

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

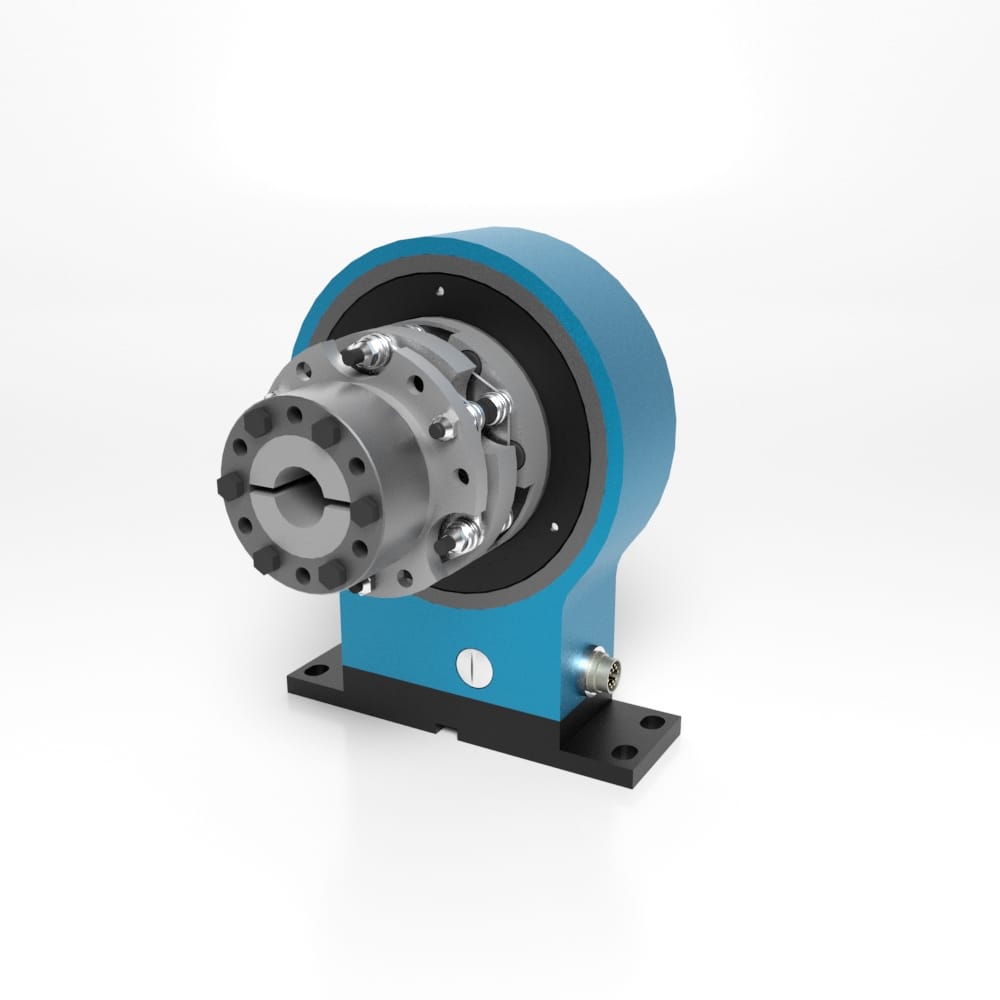

Model T1 integrates torque measurement into a double-flex flexible disk coupling. Ideal where space is at a premium, the T1’s installed length is just slightly longer than a standard coupling. Features include high-level ±5V output, 3000 Hz bandwidth, 16-bit resolution, optional speed measurement and an on-board shunt resistor right a the strain gage bridge.

See datasheet for available models, additional capacities, connectors, options, and accessories.
Can’t view product drawings? For a free downloadable CAD viewer, click here.
