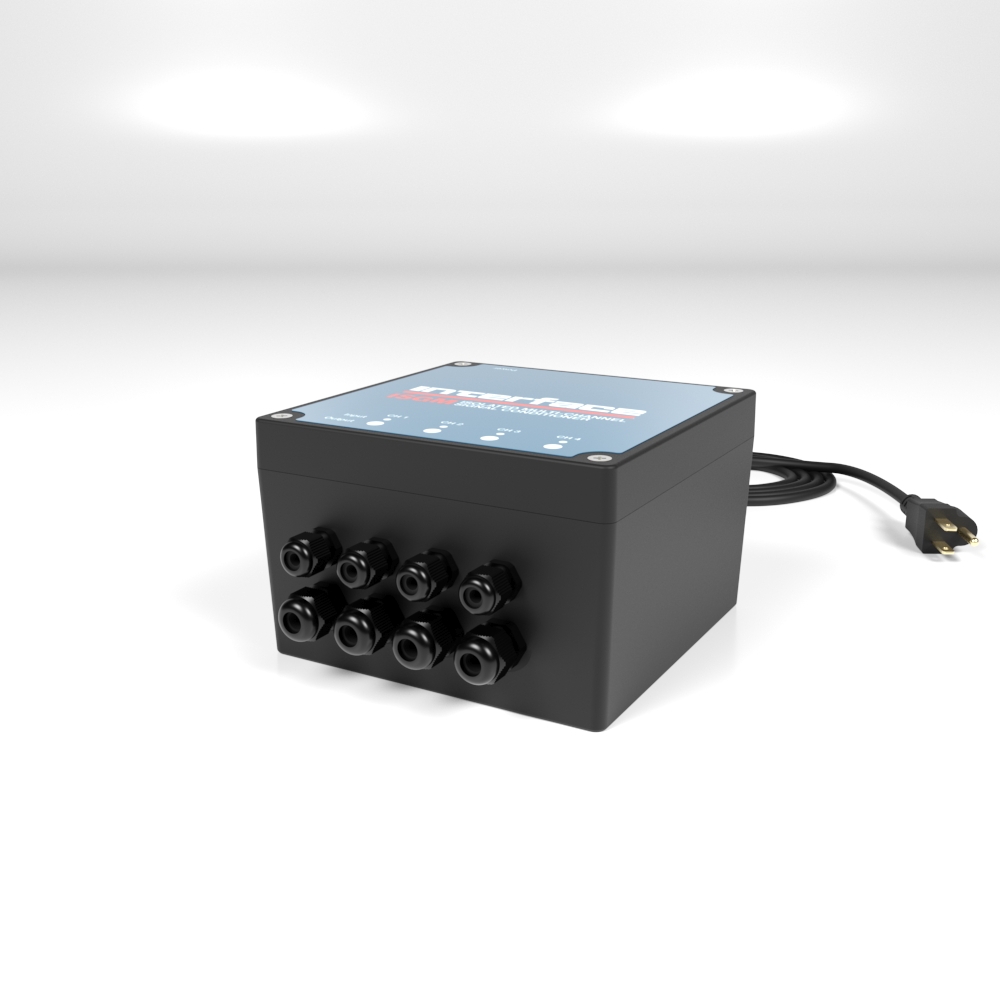

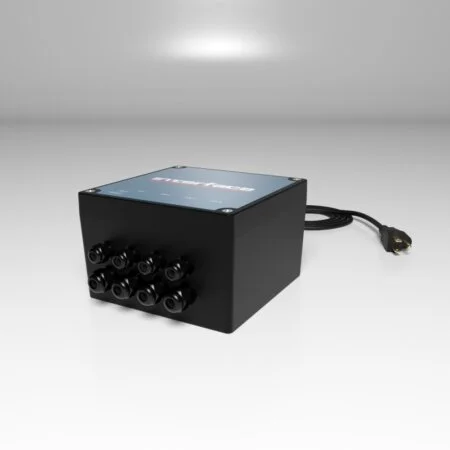

ISGM Isolated 3 & 4-Channel Signal Conditioner

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

ISGM Isolated 3 & 4-Channel Signal Conditioner

Galvanically Isolated DIN Rail Mount

Get Your Free Quote

The ISGM Isolated 3 & 4-Channel Signal Conditioner provides high-accuracy conditioning for strain-gage sensor inputs up to 4.5 mV/V. Its galvanically isolated power supply separates the output and measurement circuits, while adjustable filtering from 1 Hz to 1 kHz helps tailor response to the application. Housed in an IP67-rated aluminum enclosure, the ISGM supports analog voltage and current output options for dependable integration into industrial test, measurement, and control systems.

Product Downloads

The ISGM Isolated 3 & 4-Channel Signal Conditioner provides high-accuracy conditioning for strain-gage sensor inputs up to 4.5 mV/V.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , , Tags: , ,

Features and Benefits

  • High Accuracy
  • 4-20mA (12mA, ±8MA) and ±10V VDC Analog Output
  • Accepts inputs up to 4.5mV/V
  • 1 Hz to 1 kHz adjustable filter (up to 10kHz optional)
  • Isolated power supply

Specifications

Specifications

POWER
AC Power 110-120VAC/60Hz; 220-240VAC/50Hz
DC Power (option) Available as a special
Ripple – % <10
Current – V < mA (4-Channel) 3-Channel 10 <600 / 24 <360
4-Channel 10 <800 / 24 <420
Fuse – mA Self Re-Setting 1000
Isolation Galvanic from output and measurement circuits
EXCITATION
Voltage – VDC (V) 10 (Option 5)
Temperature Coefficient – ppm/K 25
Current – mA (mA @ V) 90 (60 @ 5)
PERFORMANCE
Output – VDC < mA ±5, ±10 <2
Output Resistance - ohm 10
Ripple – mV < 20
Input Range – mV/V 0.3 to 4.5 Switch Selectable
Input Resistance - Gohm 1
Max Bandwidth – Hz 1000
Filter – 3dB – Hz 10 to 1000 Potentiometer Adjustable
Offset – % FS Up to 50% course and fine adjust
Nonlinearity – % FS < 0.02
Span Temperature Coefficient – %/ K < 0.02/10
Zero Temperature Coefficient – %/ K < 0.02/10
ENVIRONMENTAL
Operating Temperature °C 0 to +60
°F +32 to +140
MECHANICAL
Dimensions - W x H x D in 6.2 x 6.2 x 4.0
mm 159 x 159 x 102
Electrical Connections Screw Terminal
Material Aluminum
Rating IP67

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


in mm
(1) 6.24 158.50
(2) 3.99 101.30
(3) 1.05 25.65
(4) 0.85 21.15
(5) 0.82 20.75

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

Terminal Assignment

ISG Terminal Assignment Table

1 V-voltage Output
2 GND V/I Output
3 I-Current Output
4 10-30 VDC Supply
5 GND Supply
6 PE Supply
7 Supply - SG
8 Supply + SG
9 Shield SG
10 Signal + SG
11 Signal - SG

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 4.37 × 0.91 × 2.99 in

Product Video

Features and Benefits

  • High Accuracy
  • 4-20mA (12mA, ±8MA) and ±10V VDC Analog Output
  • Accepts inputs up to 4.5mV/V
  • 1 Hz to 1 kHz adjustable filter (up to 10kHz optional)
  • Isolated power supply

Specifications

Specifications

POWER
AC Power 110-120VAC/60Hz; 220-240VAC/50Hz
DC Power (option) Available as a special
Ripple – % <10
Current – V < mA (4-Channel) 3-Channel 10 <600 / 24 <360
4-Channel 10 <800 / 24 <420
Fuse – mA Self Re-Setting 1000
Isolation Galvanic from output and measurement circuits
EXCITATION
Voltage – VDC (V) 10 (Option 5)
Temperature Coefficient – ppm/K 25
Current – mA (mA @ V) 90 (60 @ 5)
PERFORMANCE
Output – VDC < mA ±5, ±10 <2
Output Resistance - ohm 10
Ripple – mV < 20
Input Range – mV/V 0.3 to 4.5 Switch Selectable
Input Resistance - Gohm 1
Max Bandwidth – Hz 1000
Filter – 3dB – Hz 10 to 1000 Potentiometer Adjustable
Offset – % FS Up to 50% course and fine adjust
Nonlinearity – % FS < 0.02
Span Temperature Coefficient – %/ K < 0.02/10
Zero Temperature Coefficient – %/ K < 0.02/10
ENVIRONMENTAL
Operating Temperature °C 0 to +60
°F +32 to +140
MECHANICAL
Dimensions - W x H x D in 6.2 x 6.2 x 4.0
mm 159 x 159 x 102
Electrical Connections Screw Terminal
Material Aluminum
Rating IP67

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions


in mm
(1) 6.24 158.50
(2) 3.99 101.30
(3) 1.05 25.65
(4) 0.85 21.15
(5) 0.82 20.75

U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Connector Pin Diagram

Terminal Assignment

ISG Terminal Assignment Table

1 V-voltage Output
2 GND V/I Output
3 I-Current Output
4 10-30 VDC Supply
5 GND Supply
6 PE Supply
7 Supply - SG
8 Supply + SG
9 Shield SG
10 Signal + SG
11 Signal - SG

For more information visit Electrical Wiring Diagrams

Additional Information

Dimensions 4.37 × 0.91 × 2.99 in

Product Video

Short Description Sku Price
Model ISG Isolated DIN Rail Mount Signal Conditioner, 10Hz to 1kHz Bandwidth for 4-20mA (12,+/-8mA) Output ISGM3-V0-10-1 Price on Inquiry
Model ISG Isolated DIN Rail Mount Signal Conditioner, 10Hz to 1kHz Bandwidth for 4-20mA Output ISGM4-V0-10-1 Price on Inquiry
