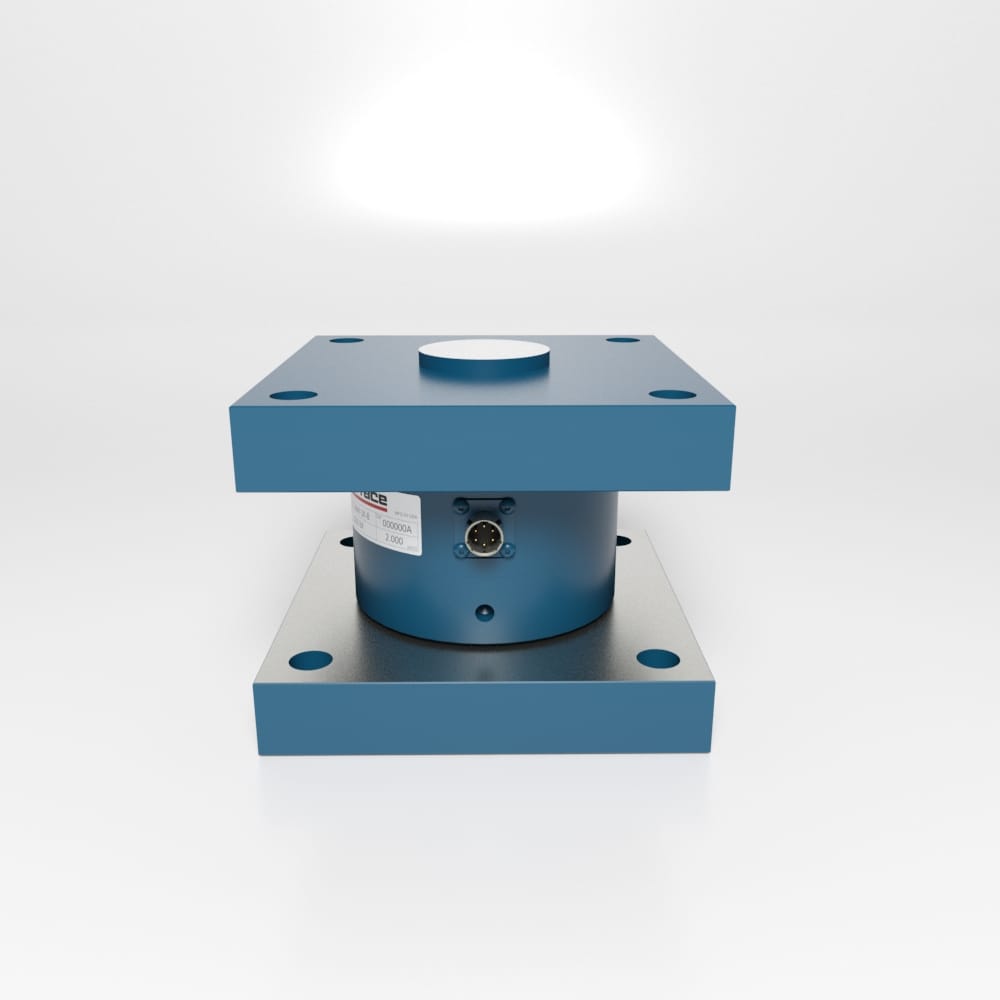

Mounting Plates

Top & Bottom Plates

Interface mounting plates are made from the best grade alloy steel/stainless steel, machined to the tightest specifications and are designed specifically to maintain the performance of the load cell in your application.

  • Designed to work with Interface products
  • Made with the highest quality components and processes
  • Created to maintain the specification of the product they are intended for
  • Distributes the load over the foundation of the supporting structure
  • Provides a prepared surface for the load cell
  • Eliminates the requirement for expansion assemblies in most installations

Request a Quote

Request a Quote

Request a CAD File

Product Downloads

  • Data Sheet

Specifications


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

Dimensions


International System of Units (SI) dimensions and capacities are provided for conversion only. Standard products have U.S. capacities and dimensions. SI capacities available upon special request and at an additional cost.

The installation of a compression load cell under a weigh bridge, tank, or other structure normally requires that mounting plates be used.

Models TP-101, TP-102, TP-103, TP-104, TP-301, TP-302, TP-303, BP-101, BP-102, BP-103, BP-104, BP-108, BP-302, BP-303, and BP-308 are available.

See datasheet for available models, additional capacities, connectors, options, and accessories.
