Solution

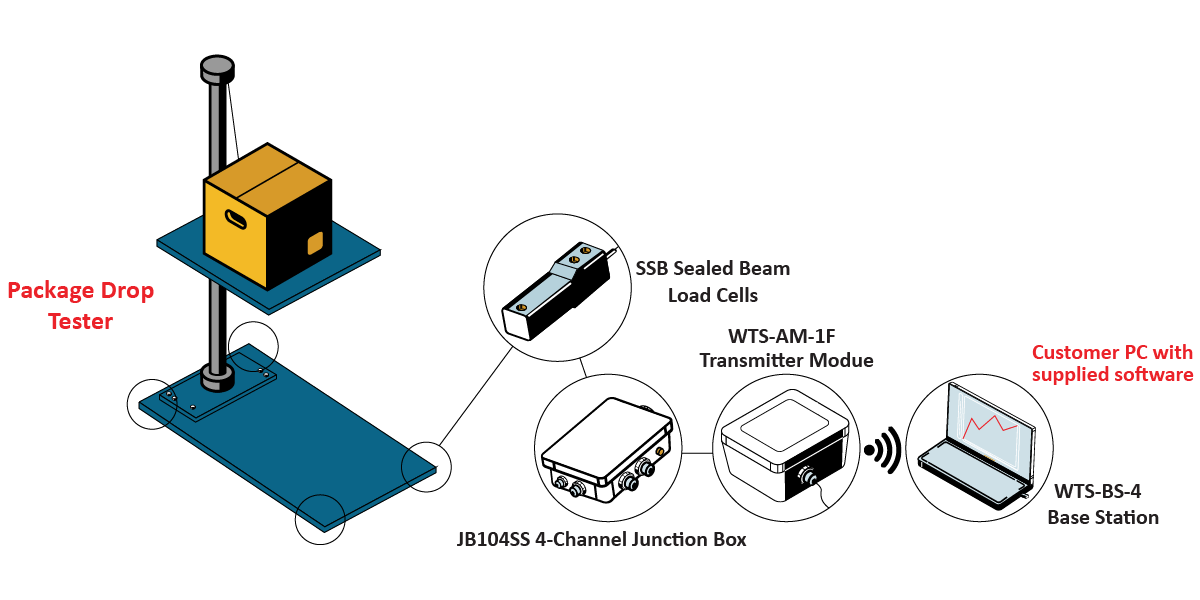

Package Drop Tester
A package drop test is an experiment of the falls that a package carrying goods experiences during shipping and handling.
Four SSB Sealed Beam Load Cells
JB104SS 4-Channel Stainless Steel Junction Box
WTS-AM-1F Fast Wireless Strain Bridge Transmitter Module
WTS-BS-4 Wireless Base Station with Log100 Software
Customer PC
Four of Interface’s SSB Sealed Beam Load Cells are mounted to each corner of the of the tester’s platform.
When a package is dropped, the SSB’s are connected to the JB104SS 4-Channel Stainless Steel Junction Box to sum the forces. The junction box is then connected to the WTS-AM-1F Fast Wireless Strain Bridge Transmitter Module.
Data is wirelessly transmitted to the WTS-BS-4 USB Base Station which is connected to the customer’s computer, where it is displayed, logged, and graphed with supplied Log100 software.
