Solution

AxialTQ™ Engine Dynamometer

The customer needs to measure the torque and the speed (RPM) produced by an engine and calculate it simultaneously.

Contact an Application Engineer

Summary

Customer Need / Challenge
The customer needs to measure the torque and the speed (RPM) produced by an engine and calculate it simultaneously.
Interface Solution
The Interface AxialTQ Wireless Rotary Torque Measurement System was developed in direct collaboration with over 30 end-users who shared their wish-lists for operational priorities, user interface, design, features, real-world field issues and more.
Results
The Interface AxialTQ Wireless Rotary Torque Measurement System accurately and simultaneously measured and calculated the torque and rotational speed (RPM) of the engine in real-time while collecting the data.

Materials

AxialTQ Wireless Rotary Torque Transducer
AxialTQ Output Module
Customer PC running AxialTQ Assistant Software

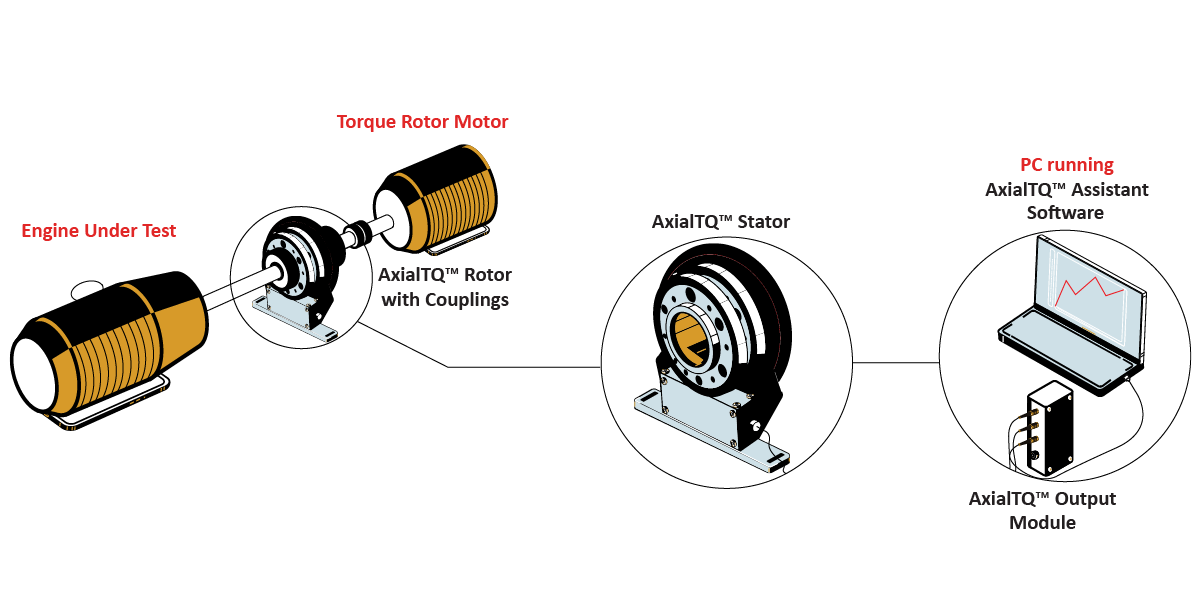

How it Works

The AxialTQ rotor senses the torque with a high precision sensing element and strain gages. The electrical output is converted from an analog to a digital signal in the rotor. The high accuracy of the system is based on this combination of the proven sensing element technology with next generation electronics to provide the highest quality torque measurement available in the industry.

Download PDF

Animated Application Note
