Airplane Jacking System

A customer wants to weigh their aircrafts with their jacking system. They need a wireless solution, and they want results to show up in real-time.

Contact an Application Engineer

AirplaneJackingGraphic_Color

Summary

Customer Need / Challenge
A customer wants to weigh their aircrafts with their jacking system. They need a wireless solution, and they want results to show up in real-time.
Interface Solution
Interface’s WTS 1200 Standard Precision LowProfile™ Wireless Load Cells can be installed at each jacking point. When connected to the WTS Wireless Telemetry System, results of all jacking points or individual jacking points can be wirelessly transmitted and displayed through a customer computer with Log 100 software, or using the WTS-HK-S Next-Generation Wireless Handheld.
Results
Interface’s load cells and WTS Wireless Telemetry System successfully achieved the customer’s need to weigh their aircrafts.

Materials

Multiple WTS 1200 Standard Precision LowProfile™ Wireless Load Cells with integrated wireless acquisition module
WTS-BS-6 Wireless Telemetry Dongle Base Station
WTS-HK-S Next-Generation Wireless Handheld
Supplied Log100 Software
Customer PC or Laptop

How it Works

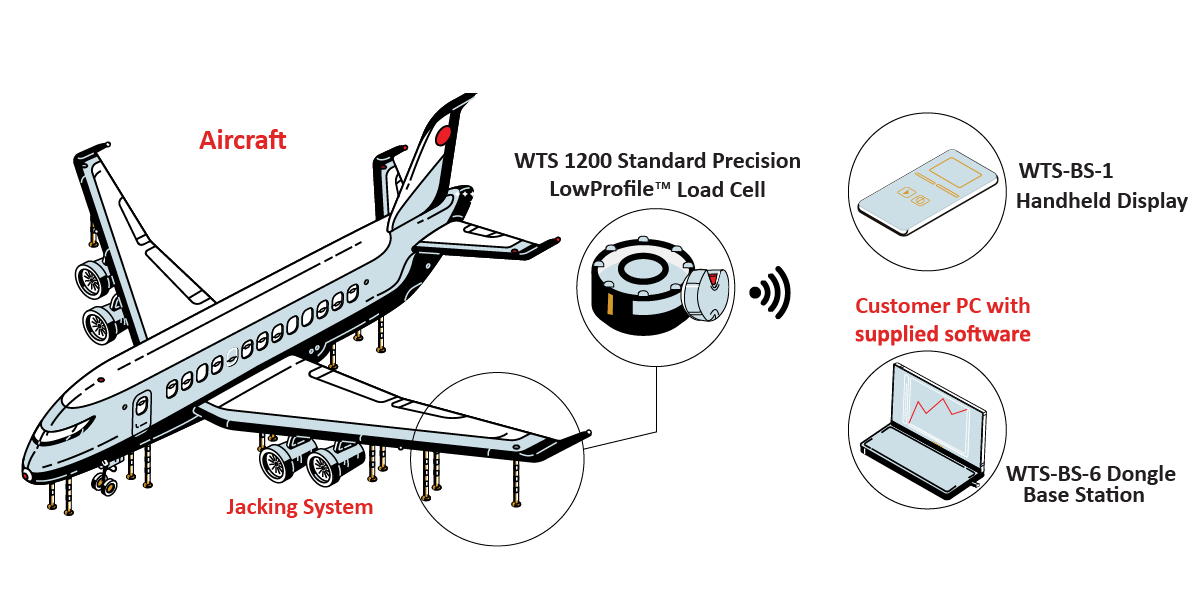

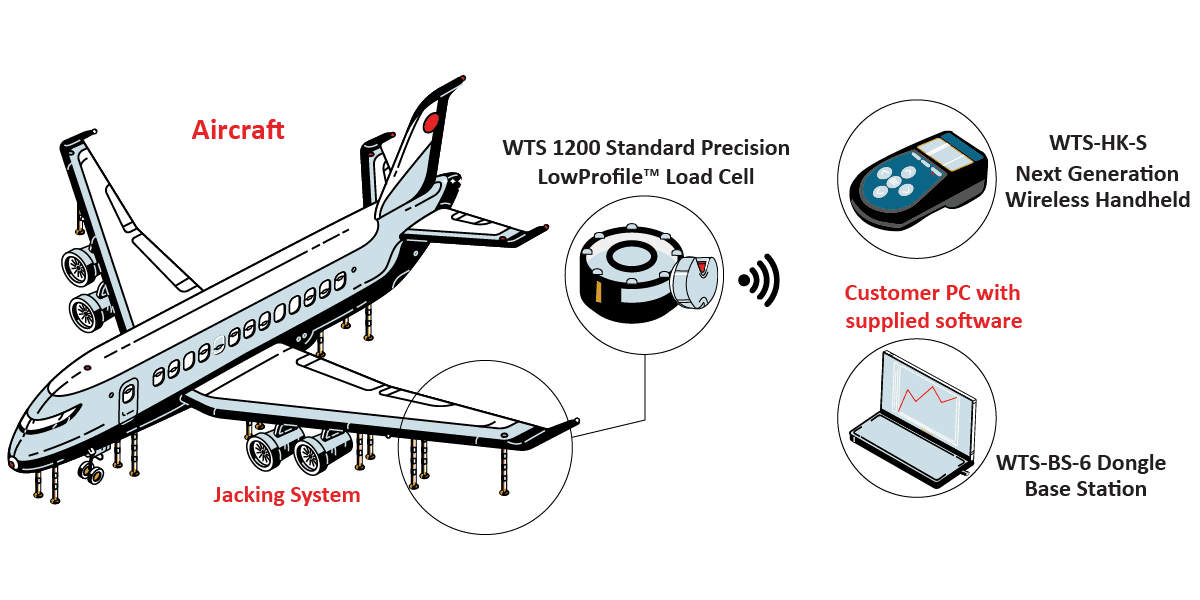

Multiple WTS 1200 Standard Precision LowProfile™ Wireless Load Cells are installed to each of the jacking points along the aircraft.
When connected to the integrated Wireless Strain Bridge Transmitter Module, force results of all jacking points or individual jacking points can be wirelessly transmitted to the WTS-BS-6 Wireless Telemetry Dongle Base Station and displayed on the customer’s PC. Colored alarms can be set in case there is force overload.
Results can also be transmitted to WTS-HK-S Next-Generation Wireless Handheld.
