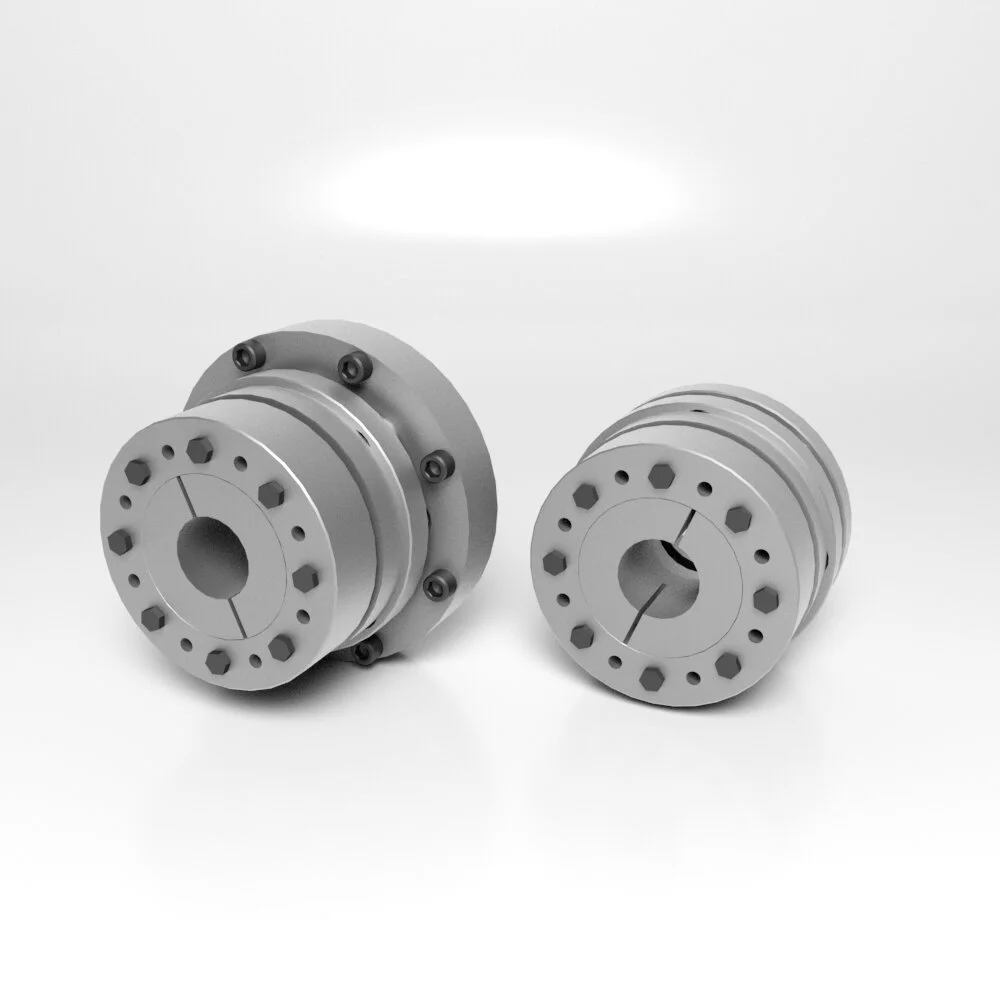

AxialTQ Single Flex Couplings

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

AxialTQ Single Flex Couplings

Single Flex Couplings

Product Downloads

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: ,

Features and Benefits

  • High precision and reliability
  • Optimum running smoothness
  • High speeds
  • Robust and highly dynamic
  • Different designs for optimum set-up

Specifications

Specifications

AxialTQ Single Flex Couplings Specs

Size A B C D E F
DIN Size 100 100 120 150 180 225
Torque [Nm] 100 250 500, 1K 2K, 3K 5K 10K
Nominal torque TKN [Nm] 190 300 1100 3500 5800 10,000
Peak torque 1) TKS [Nm] 285 450 1650 5250 8700 14,250
Oscillation range acceleration DIN 50100 (peak - peak) TKSB [Nm] 380 600 2200 7000 11,600 20,000
Outer diameter D [mm] 102 102 132 178 210 252
Minimum hub bore d min [mm] 25 H6 25 H6 45 H6 50 H6 60 H6 70 H6
Maximum hub bore d max [mm] 45 H6 45 H6 70 H6 85 H6 100 H6 120 H6
Maximum speed 2) n max [rpm] 18,000 18,000 15,000 12,000 10,000 8,000
Permitted misalignments Perm. angular misalignment 3) ∆Kw [°] 1.0 0.7 0.6 0.5 0.5 0.5
Perm. axial displacement 4) ∆Ka [mm] 1.1 0.8 1.1 1.2 1.4 1.6
Perm. radial misalignment 4) 5) ∆Kr [mm] 1.6 1.1 1.1 1.1 1.3 1.5
Spring Rigidities Torsion 4) DIN 1 and 2 6) CT [103  Nm/rad] 72.5 90 600 1740 5950 10300
Angular spring rigidity 3) Cw [Nm/rad] 229 285 1850 6980 11250 18580
Axial spring rigidity 3) Ca [N/mm] 235 525 1325 1400 1195 2640
Mass moments of inertia Shaft Type Coupling - External Clamping (with max. bore) [10-3  kgm2] 1.53 1.53 8.49 34.47 81.00 203.74
DIN Flange 1 - Single Joint [10-3  kgm2] 1.37 1.37 6.52 31.92 71.86 177.88
DIN Flange 2 - Single Joint [10-3  kgm2] 7.24 7.24 27.20 94.14 195.30 443.34
Weights Shaft Type Coupling - External Clamping (with max. bore) [kg] 1.16 1.16 3.34 8.03 13.36 23.36
DIN Flange 1 - Single Joint [kg] 0.96 0.96 2.35 7.35 11.11 19.46
DIN Flange 2 - Single Joint [kg] 3.30 3.30 7.48 16.19 24.81 36.69
  1. Valid for unchanging load direction, max. load cycle ≤ 105
  2. For speeds of more than 5000 rpm, a limitation of the misalignment to max. 30 % is necessary.
  3. The values refer to 1 disk pack.
  4. The values refer to couplings with 2 disk packs.
  5. The values refer to the length of the measurement flange.
  6. The torque transducer is not taken into consideration.

Dimensions

Dimensions

Additional Information

Dimensions 0.00 × 0.00 × 0.00 in
