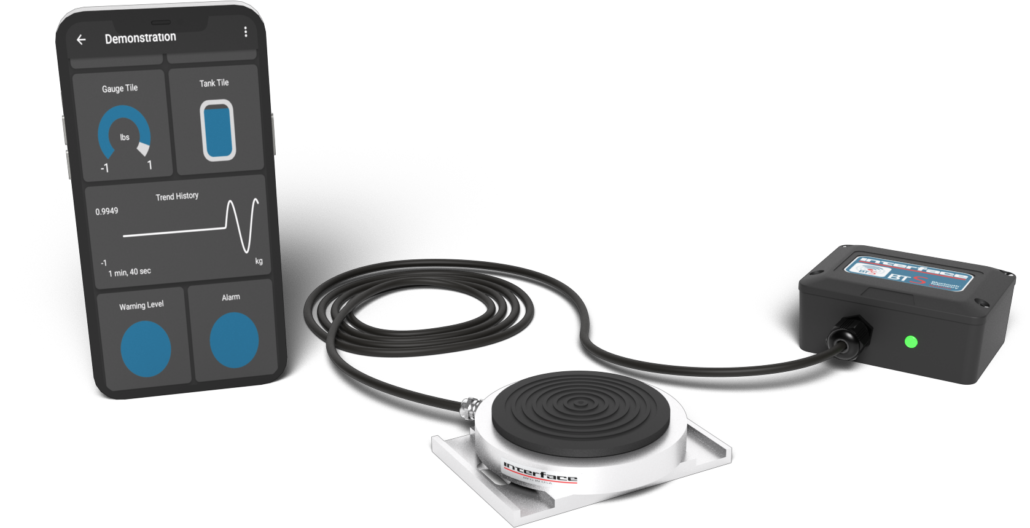

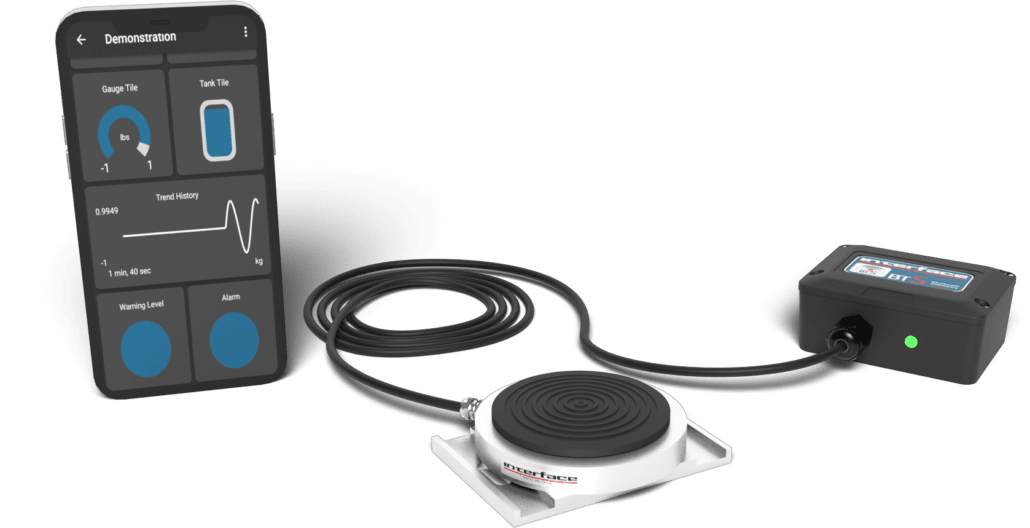

The BPL Pedal Load Cell paired with the BTS Bluetooth® Telemetry System delivers precise, wireless pedal force measurement. The compact load cell captures high-accuracy data, while the BTS transmits it in real time to mobile devices ideal for simulation, testing, and remote monitoring without the need for physical connections.
Applications:
50 lbf to 500 lbf
250 N to 2.5 kN
Model BPL is a very LowProfile® load cell for measuring force on brake pedals.
Interface Model BPL has the lowest sensitivity to off center loading available, and will outperform any competitive model!
The BTS-AM-1 is a Bluetooth Low Energy (BLE) strain bridge transmitter module that provides access to high quality measurements on a mobile platform such as a phone or tablet.
The delivery mechanism is BLE which utilizes the flexibility and availability of Bluetooth receivers while maintaining the low power requirements of embedded systems. BTS is built upon two complimentary principles of BLE: 1) broadcast advertising data which enables users to deliver the same data to multiple receivers simultaneously and 2) low power paired connections which can be used in a point to point system.

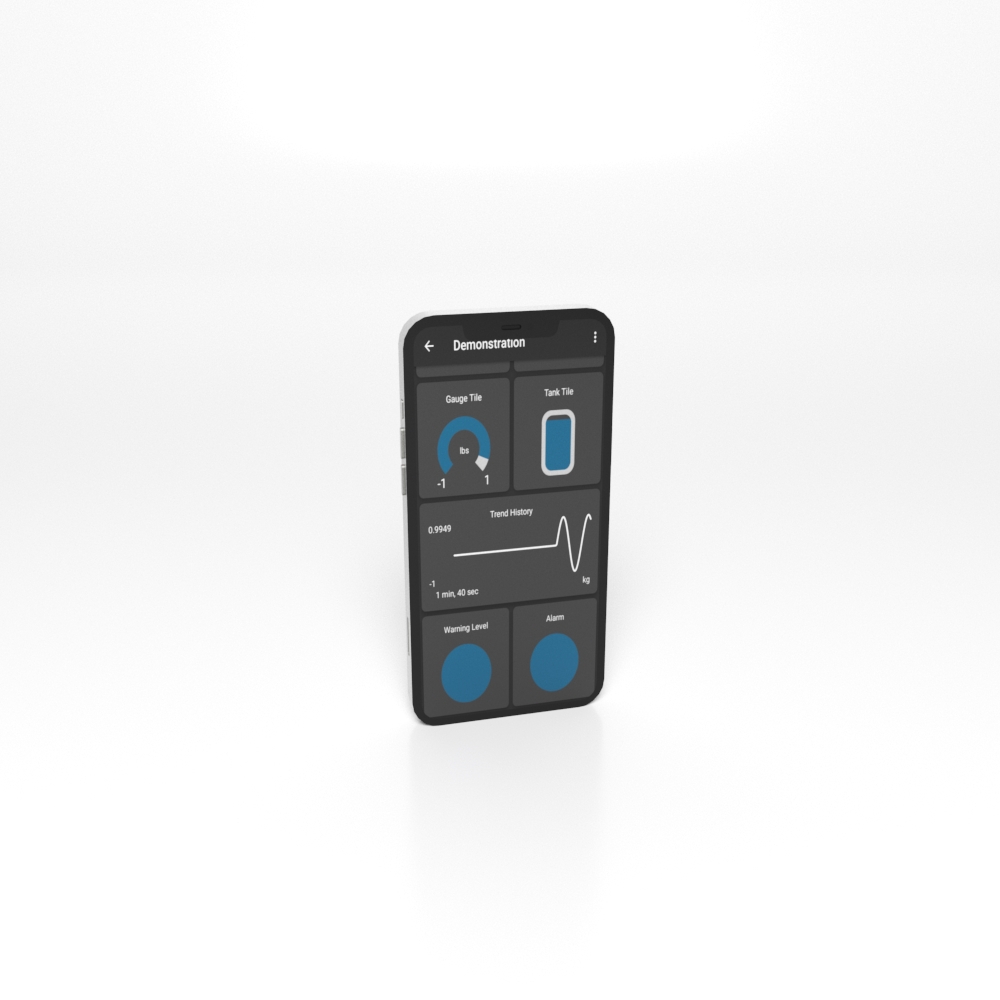

A free iOS and Android app is available for download, which enables users to create dashboards with varying degrees of detail based on application requirements. It enables BTS systems to be visualized on phones and tablets by using digital displays, gages, tanks and charts. Displayed data can be defined as mathematical expressions consisting of readings from multiple transmitters, functions and constants. The app also facilitates BTS module configuration and calibration.
Simple Integration into iOS and Android Apps: Advert format and encoding as well as details on connected services are available to facilitate integration of the device within custom apps for OEM applications.
Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
