DIG-USB USB Output Module
The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

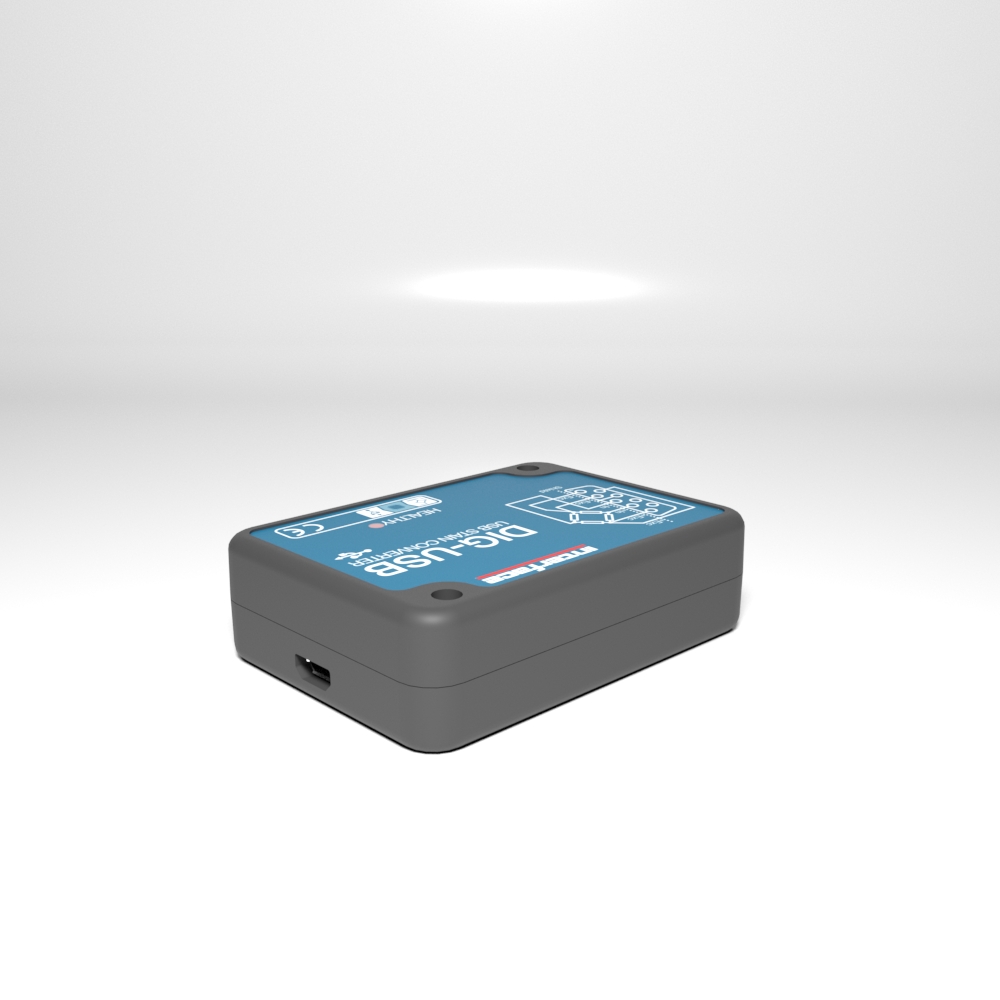

The DIG-USB product is a compact, high-precision Strain Gage Converter; converting a strain gage sensor input to a digital output and is connected to a PC via a USB port. This product allows high precision measurements to be made and communicated directly to a PC and is aimed at applications which require high-accuracy measurement repeatability. With the appropriate drivers installed, the DIG-USB appears as a virtual serial port to the PC.
Simply by plugging the device into a PC, data can be extracted from most strain gage bridge input sensors and acquired by software which allows data manipulation removing the need for amplifiers, filters and multi-meters.
The DIG-USB product is a compact, high-precision Strain Gage Converter; converting a strain gage sensor input to a digital output and is connected to a PC via a USB port.
DIG-USB Software Download
Request a Quote
Getting Started –
DIG-USB Output Module
* Data rate limited to 200/s MAX when using supplied Toolkit Software.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
The temperature module is a small double sided PCB with an 8 pin SOIC integrated circuit mounted to it. The dimensions are 10.5 x 7.6 x 2.5mm (0.413 x 0.299 x 0.098”). There are two solder pads for connection to the DIG-USB. A 2mm hole is used for fixing the temperature module to the body of the load cell.
The module should, ideally, be positioned as close as possible to the strain gauges. The IC on the temperature module must also be in good thermal contact with the load cell body so the strain gauges and temperature sensor see the same temperature.
For more information visit Electrical Wiring Diagrams
| Dimensions | 0.04 × 0.04 × 0.90 in |
|---|
DIG-USB Software Download
Request a Quote
Getting Started –
DIG-USB Output Module
* Data rate limited to 200/s MAX when using supplied Toolkit Software.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.
The temperature module is a small double sided PCB with an 8 pin SOIC integrated circuit mounted to it. The dimensions are 10.5 x 7.6 x 2.5mm (0.413 x 0.299 x 0.098”). There are two solder pads for connection to the DIG-USB. A 2mm hole is used for fixing the temperature module to the body of the load cell.
The module should, ideally, be positioned as close as possible to the strain gauges. The IC on the temperature module must also be in good thermal contact with the load cell body so the strain gauges and temperature sensor see the same temperature.
For more information visit Electrical Wiring Diagrams
| Dimensions | 0.04 × 0.04 × 0.90 in |
|---|
