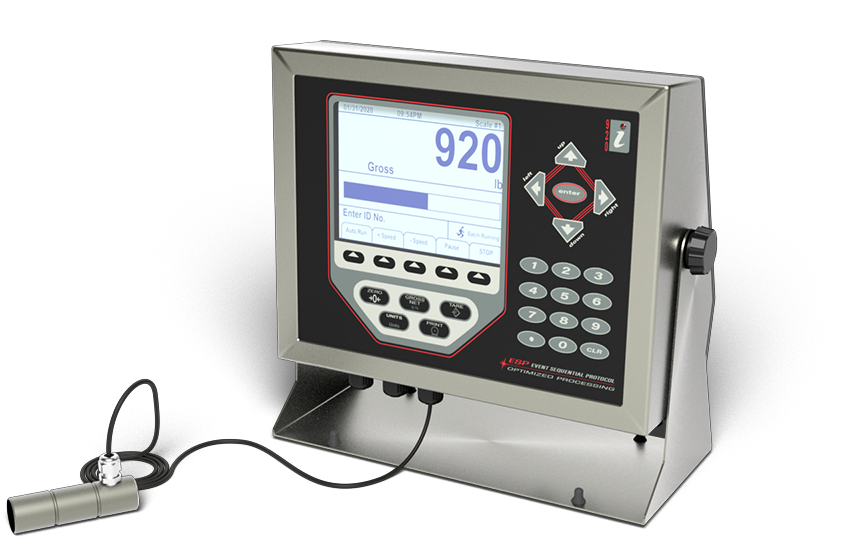

The ILMP stainless steel load pin delivers rugged, real-time force measurement up to 3,307 K lbf, while the 920i programmable weight indicator in a NEMA 4X enclosure displays, logs, and controls the data with high resolution and rapid sampling—creating a reliable, integrated load-monitoring system.
Applications:
1.1K to 3,307K lbf
0.5MT to 1,500 MT
The Interface range of load measurement pins are designed for general use. They are a simple and versatile type of load pin that are used in a large variety of applications such as cranes, winches, hoists, load shackles, and bearing blocks. They are easily installed into machines by replacing any existing load bearing pin to provide accurate, real time monitoring of load forces. Machined from high tensile stainless steel and normally supplied complete with a keeper plate, our load pins are built to exacting standards and are proof loaded to 150% of normal rated load. Our standard load pin range covers ratings between 1.1K lbf (0.5MT) and 3,307K lbf (1500 MT). The ILMP load pin series can be supplied on it’s own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
Model 920i is bidirectional and comes in a NEMA 4X stainless enclosure. Standard options include 8,000,000 internal counts, 4.6 x 3.4 inch LCD 7-digit display and a measurement rate that goes up to 960 Hz. Available options include analog and relay outputs.
Interface accessory products are made from the highest components and processes to ensure the specifications for your Interface products perform to meet their published specifications.
Interface uses the highest grade cables and connectors to ensure the performance of your force and torque systems are at the highest level.
Interface strongly recommends requesting a system-level calibration when purchasing a force measurement sensor with instrumentation. This final step ensures the sensor and instrumentation are properly calibrated and functioning together before leaving Interface.
