3AR Series Round 3-Axis Load Cells

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

3AR Series Round 3-Axis Load Cells

Fx (N), Fy (N), Fz (N)

Get Your Free Quote

Force: 1.1K lbf to 224K lbf
Force: 5 kN to 1000 kN

The 3AR Series 3-Axis Load Cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and bio-mechanical). The load cell is provided in various capacity ranges and sizes with each of the three axes providing the same capacity. We are happy to work with your design needs providing a custom design, if warranted, for varying capacities (between X, Y, and Z), higher temperature capability, or OEM and private labeling.

Product Downloads

The 3A Series 3-Axis Load Cell is ideally suited to many industrial and scientific applications, such as aerospace, robotics, automotive and medical research (orthopedics and bio-mechanical). The load cell is provided in various capacity ranges and sizes with each of the three axes providing the same capacity. We are happy to work with your design needs providing a custom design, if warranted, for varying capacities (between X, Y, and Z), higher temperature capability, or OEM and private labeling.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

SKU: N/A Categories: , ,

Features and Benefits

  • 3-Axis – Fx Fy Fz; independent bridges
  • Capacities – 5kN to 1000 kN (1.1Klbf to 224Klbf)
  • Compact size
  • Low crosstalk
  • Temperature compensated
  • Optional BSC4A Amplifier can provide scaled analog outputs for all 3 channels simultaneously
  • Optional BSC4D PC Interface Module can log, graph and display data for all 3 channels simultaneously

Cable Connection Options (Included with purchase)

  • M12 to 37-Pin D-Sub
  • M12 to M16 24-pin
  • M12 to 44-pin High Density D-Sub

Typical Applications

  • Robotics
  • Medical Technology
  • Measurements in Automation Technology
  • Mounting and Assembling of Parts in Production Lines
  • 6-Axis Force/Torque Platforms Consisting of 4x 3AR Sensors
  • Research and Testing

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions 3AR100

3AR100 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR125

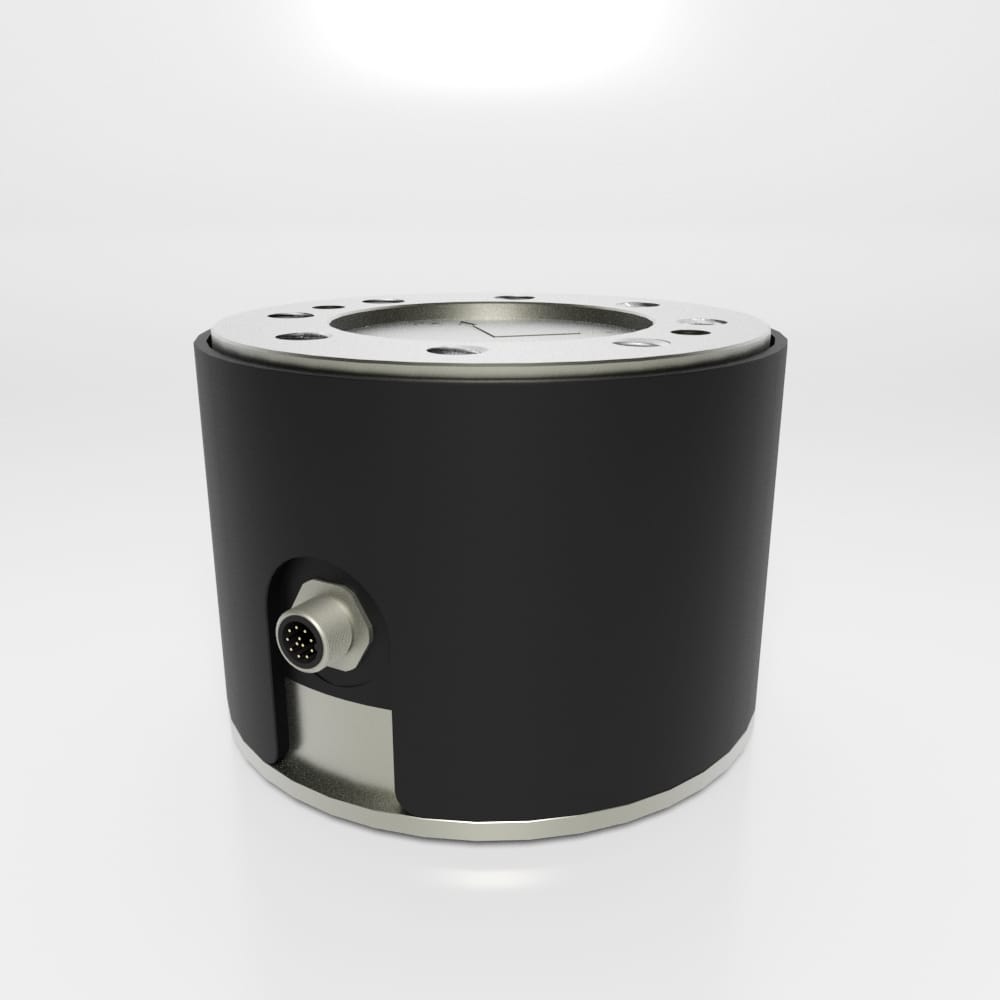

3AR125 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR155

3AR155 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR225

3AR225 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Characteristics


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Shipping Information

Configurations

, , , , , , , , , ,

Configuration Weight Range: lbs: 0.05, 0.07, 0.1, 0.32, 0.63, 56.5 kg: 0.02, 0.03, 0.05, 0.12, 0.29, 25.6

Product Video

Features and Benefits

  • 3-Axis – Fx Fy Fz; independent bridges
  • Capacities – 5kN to 1000 kN (1.1Klbf to 224Klbf)
  • Compact size
  • Low crosstalk
  • Temperature compensated
  • Optional BSC4A Amplifier can provide scaled analog outputs for all 3 channels simultaneously
  • Optional BSC4D PC Interface Module can log, graph and display data for all 3 channels simultaneously

Cable Connection Options (Included with purchase)

  • M12 to 37-Pin D-Sub
  • M12 to M16 24-pin
  • M12 to 44-pin High Density D-Sub

Typical Applications

  • Robotics
  • Medical Technology
  • Measurements in Automation Technology
  • Mounting and Assembling of Parts in Production Lines
  • 6-Axis Force/Torque Platforms Consisting of 4x 3AR Sensors
  • Research and Testing

Specifications

Specifications


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions

Dimensions 3AR100

3AR100 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR125

3AR125 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR155

3AR155 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Dimensions 3AR225

3AR225 Round 3-Axis Load Cell


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Characteristics


U.S. dimensions and capacities are provided for conversion only. Standard products have International System of Units (SI) capacities and dimensions.

Shipping Information

Configurations

, , , , , , , , , ,

Configuration Weight Range: lbs: 0.05, 0.07, 0.1, 0.32, 0.63, 56.5 kg: 0.02, 0.03, 0.05, 0.12, 0.29, 25.6

Product Video

Short Description Sku Price
Model 3AR225E Series Round 3-Axis Load Cell, Fx = 250KN, Fy = 250KN, Fz = 100KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR225E $ 9,500.00
Model 3AR225F Series Round 3-Axis Load Cell, Fx = 250KN, Fy = 250KN, Fz = 1M, with 5-meter Cable and Installed 12-pin M12 Connector 3AR225F $ 9,500.00
Model 3AR225D Series Round 3-Axis Load Cell, Fx = 150KN, Fy = 150KN, Fz = 400KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR225D $ 9,500.00
Model 3AR100E Series Round 3-Axis Load Cell, Fx = 20KN, Fy = 20KN, Fz = 60KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100E $ 5,500.00
Model 3AR155C Series Round 3-Axis Load Cell, Fx = 100KN, Fy = 100KN, Fz = 300KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR155C $ 6,800.00
Model 3AR155A Series Round 3-Axis Load Cell, Fx = 50KN, Fy = 50KN, Fz = 200KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR155A $ 6,800.00
Model 3AR125D Series Round 3-Axis Load Cell, Fx = 40KN, Fy = 40KN, Fz = 120KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR125D $ 5,750.00
Model 3AR125C Series Round 3-Axis Load Cell, Fx = 30KN, Fy = 30KN, Fz = 90KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR125C $ 5,750.00
Model 3AR100D Series Round 3-Axis Load Cell, Fx = 10KN, Fy = 10KN, Fz = 30KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100D $ 5,500.00
Model 3AR100c Series Round 3-Axis Load Cell, Fx = 5KN, Fy = 5KN, Fz = 20KN, with 5-meter Cable and Installed 12-pin M12 Connector 3AR100C $ 5,500.00

Additional products
