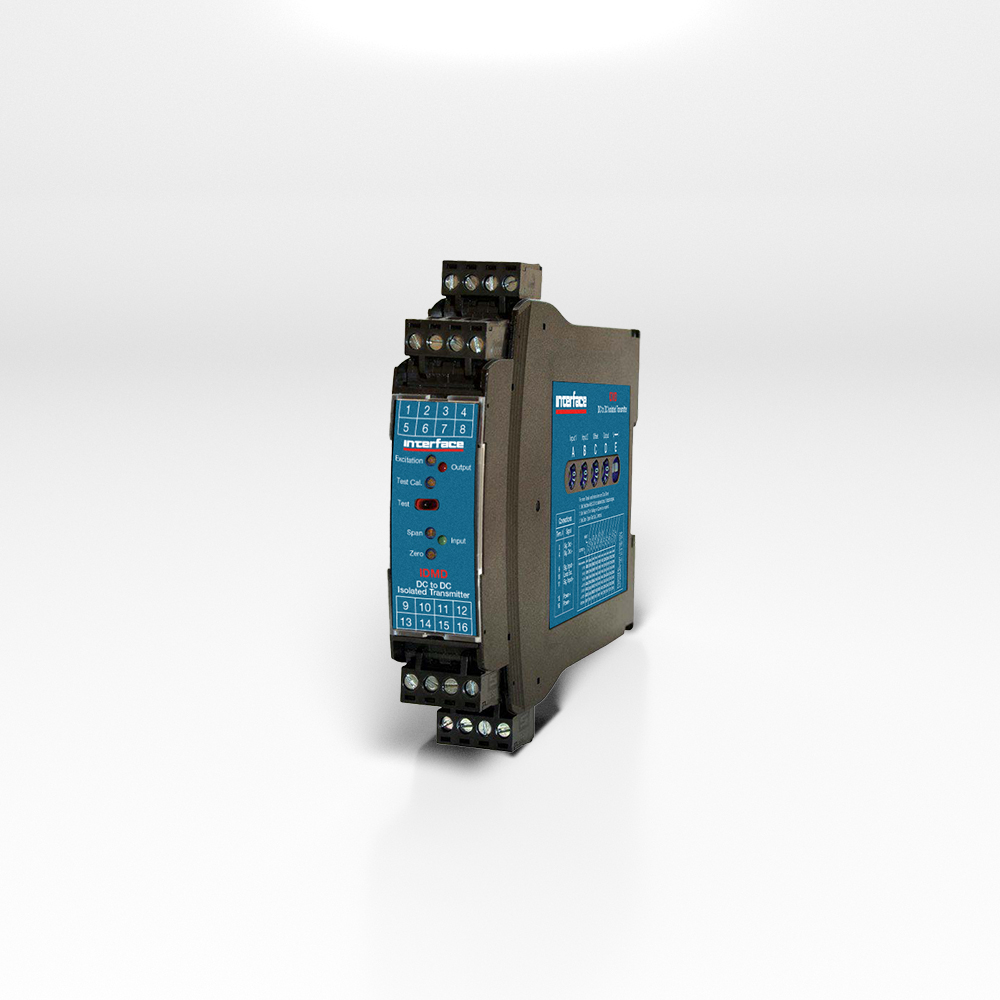

IDMD DIN Rail Mount Signal Conditioner

PRICING NOTICE

The pricing listed on our website is only for U.S. buyers and all pricing is subject to change without notice. Any inquiries for products from buyers outside of the U.S. will receive a quote and availability from the licensed distributor nearest your region. These prices will be based on product availability, currency conversions, markets, taxes, shipping costs, as well as local support.

IDMD DIN Rail Mount Signal Conditioner

DIN Rail Mount Signal Conditioner

Get Your Free Quote

The IDMD accepts an input from one to four strain gauges, bridge type sensors, load cells, or pressure transducers. It filters, amplifies, and converts the resulting millivolt signal into the selected DC voltage or current output that is linearly related to the input. The full 3-way (input, output, power) isolation makes this module useful for ground loop elimination, common mode signal rejection or noise pickup reduction. The adjustable excitation power supply generates a stable source of voltage to drive from one to four 350 Ω (or greater) devices. Sense lead circuitry is included to cancel the effects of lead wire resistance, if required. Input, output, excitation and zero offset are field configurable, via external rotary and slide switches. Offsets up to ±100% of span can be used to cancel sensor offsets or non-zero dead weights (taring). Non-interactive zero and span simplifies calibration.

Product Downloads

The IDMD accepts an input from one to four strain gauges, bridge type sensors, load cells, or pressure transducers. It filters, amplifies, and converts the resulting millivolt signal into the selected DC voltage or current output that is linearly related to the input.

Need a quote or looking to purchase this item?

Login, scroll to see your model descriptions and SKU part number, then use the Request for Quote button to submit your request.

Request a QuoteRequest a CAD File

Categories: , , Tag:

Features and Benefits

  • Drive up to Four 350 Ω Bridges
  • Adjustable Excitation Power Supply
  • Sense Lead Compensation
  • One Minute Setup for Hundreds of I/O Ranges
  • Removable Plugs for Faster Installation
  • Non-Interactive Zero and Span
  • Full 3-Way Input/Output/Power Isolation
  • Input and Output LoopTracker® LEDs
  • Output Test or Calibration Resistor Options

Options

  • Switch with built-in calibration resistor. Specify resistor value
  • Switch for external calibration resistor
  • 10 millisecond response time, or consult factory
  • DF option will cause output noise levels to be greater than standard specifications
  • Conformal coating for moisture resistance

Accessories

  • Spare removable 4 terminal plug, black.

Ordering Information

  • Load Cell Weighing Systems and Scales
  • Strain Gauge Pressure Sensors and Transducers
  • Tanks, Scales, Extruder Melt Pressure, Crane Loads

Specifications

Specifications

Strain Gauge Input Ranges 100 Ω to 10,000 Ω bridges at 10 VDC, Up to four 350 Ω bridges at 10 VDC, Minimum: 0 to 5 mV range 0.5 mV/V sensitivity, Maximum: 0 to 400 mV range 40 mV/V sensitivity, Millivolt output range is determined by the sensor sensitivity (mV/V) and the excitation voltage: mV/V sensitivity X excitation voltage = total mV range
Input Impedance 200 kΩ typical
Common Mode Rejection 100 dB minimum
Calibration Resistor Options M01 option: Switch with calibration resistor inside module, Specify resistor value, M02 option: Switch for external (load cell) calibration resistor
Excitation Voltage Switch Selectable: 0-10 VDC in 1 V increments, Maximum Output: 10 VDC maximum at 120 mA, Drive Capability: Up to four 350 Ω bridges at 10 VDC, Fine Adjustment: ±5% via multi-turn potentiometer, Stability: ±0.01% per °C
Sense Lead Compensation Better than ±0.01% per 1 Ω change in lead wire resistance, Maximum lead wire resistance: 10 Ω with 350 Ω at 10 VDC
LoopTracker Variable brightness LEDs for input/output loop level and status
DC Output Ranges Voltage (10 mA max.): 0-1 VDC to 0-10 VDC, Bipolar Voltage (±10 mA max.): ±5 VDC or ±10 VDC, Current: 0-2 mADC to 0-20 mADC, Compliance, drive at 20 mA: 20 V, 1000 Ω drive, Current output can be selectively wired for sink or source
Output Calibration Multi-turn zero and span potentiometers, ±15% of span adjustment range typical, Zero offset switch: ±100% of span in 15% increments
Output Test Sets output to test level when pressed, Adjustable 0-100% of span, Not available with M01 or M02 options
Output Ripple and Noise Less than 10 mVRMS ripple and noise
Linearity Better than ±0.1% of span
Ambient Temperature Range and Stability –10°C to +60°C operating ambient, Better than ±0.02% of span per °C stability
Response Time 70 milliseconds typical (14.2 Hz), DF option: 10 millisecond response time typical (100 Hz), Contact factory for custom response times
Isolation 1200 VRMS min., Full isolation: power to input, power to output, input to output
Housing and Connectors IP 40, requires installation in panel or enclosure, For use in Pollution Degree 2 Environment, Mount vertically to a 35 mm DIN rail, Four 4-terminal removable connectors, 14 AWG max wire size
Dimensions 0.89" W x 4.62" H x 4.81" D (22.5 mm W x 117 mm H x 122 mm D) *Height includes connectors
Power Standard: 85-265 VAC, 50/60 Hz or 60-300 VDC, D option: 9-30 VDC (either polarity) or 10-32 VAC, Power: 2 to 5 Watts depending on number of load cells

Dimensions

Dimensions

0.89″ W x 4.62″ H x 4.81″ D (22.5 mm W x 117 mm H x 122 mm D) *Height includes connectors

Connector Pin Diagram

Input: 100 Ω to 10,000 Ω Bridges, 0.5 mV/V to 40 mV/V, 1-10 VDC Excitation
Output: 0-1 V to ±10 V or 0-2 mA to 4-20 mA (Sink or Source)

MODEL INPUT OUTPUT POWER
IDMD Field configurable , Specify the following if factory is to set switches, Bridge mV/V or mV range, Excitation voltage Field configurable, Specify following if factory is to set switches, Output range, Output type (V or mA) 85-265 VAC or 60-300 VDC
IDMD 9-30 VDC or 10-32 VAC

Diagnostic Voltage Measurements
Using a meter with at least 10 megaohm input impedance, measure the voltage coming from the strain gauge at the locations shown. Sensitivity is measured in mV/V.

Positive Meter Lead Negative Meter Lead Meter Reading No pressure/load Meter Reading Full pressure/load
+ Excitation - Excitation Excitation Voltage Excitation Voltage
+ Signal - Excitation + ½ Excitation Voltage ½ Excitation Voltage + (½ X Excitation Voltage X Sensitivity)
- Signal - Excitation + ½ Excitation Voltage ½ Excitation Voltage - (½ X Excitation Voltage X Sensitivity)
+ Signal - Signal Zero Volts ½ Excitation Voltage X Sensitivity

Typical Wiring Color Codes for Load Cells
Always consult manufacturer. Exceptions and/or custom wire colors exist.

FUNCTION COLOR
+ Excitation Red
- Excitation Black
+ Signal Green
- Signal White
Shield Shielding
+ Sense -
- Sense -
